EM-MS Straight Flute Taps for Through and Blind Holes
Series No. 8330 Plug Chamfer 4 to 6 Pitches

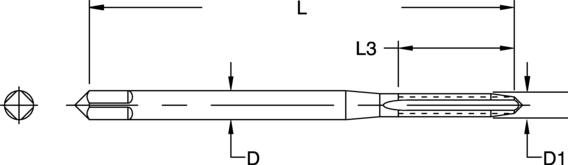

11210.gif 10624.jpg
    CLICK TOOL NUMBERS TO ORDER
D1 pitch dia. limit order # catalog # L L3 L4 D # of flutes thread series Uncoated
4 40 H2 2728920 89599 1.88   .563 .141 3 NC/UNC
5 40 H2 2728915 89601 1.94   .625 .141 3 NC/UNC
6 32 H3 2728910 89602 2.00   .688 .141 3 NC/UNC
8 32 H3 2728900 89604 2.13   .750 .168 3 NC/UNC
10 32 H3 2728884 89607 2.38   .875 .194 3 NF/UNF
10 24 H3 2728895 89606 2.38   .875 .194 3 NC/UNC
1/4 20 H3 2728879 89613 2.50 1.000 .255 3 NC/UNC
1/4 28 H3 2728869 89614 2.50 1.000 .255 3 NF/UNF
5/16 24 H3 2728859 89616 2.72 1.125 .318 4 NF/UNF
5/16 18 H3 2728864 89615 2.72 1.125 .318 4 NC/UNC
7/16 20 H3 2728840 89620 3.16 1.438 .323 4 NF/UNF
7/16 14 H3 2728844 89619 3.16 1.438 .323 4 NC/UNC
1/2 13 H3 2728834 89621 3.38 1.656 .367 4 NC/UNC
1/2 20 H3 2728829 89622 3.38 1.656 .367 4 NF/UNF
3/8 24 H3 2728849 89618 2.94 1.250 .381 4 NF/UNF
3/8 16 H3 2703960 89617 2.94 1.250 .381 4 NC/UNC
5/8 11 H3 2728824 89625 3.81 1.813 .480 4 NC/UNC
5/8 18 H3 2728820 89626 3.81 1.813 .480 4 NF/UNF
3/4 10 H3 2728815 89627 4.25 2.000 .590 4 NC/UNC
3/4 16 H3 2728810 89628 4.25 2.000 .590 4 NF/UNF
