Series No. 8753 Plug Chamfer 4 to 5 Pitches

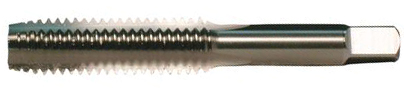

Solid Carbide Metric Straight Three-Flute Taps for Aluminum
Series No. 8753 Plug Chamfer 4 to 5 Pitches

CLICK TOOL NUMBERS TO ORDER
D1	pitch dia. limit	order #	catalog #	L	L3	D	# of flutes	uncoate
3	D3	2708447	71000	49	16	4	3
4	D4	2708433	71002	54	19	4	3
5	D4	3119743	71004	60	22	5	3
6	D5	3049573	71006	64	25	6	3
8	D5	2708403	71010	69	29	8	3
8	D5	2708411	71008	69	29	8	3
10	D6	2708390	71014	75	32	10	3
Solid Carbide Straight Three-Flute Taps for Aluminum Series No. 8753 Full Bottoming Chamfer 1 to 2 Pitches
3	D3	2708440	71001	49	16	4	3
4	D4	2708425	71003	54	19	4	3
5	D4	3049572	71005	60	22	5	3
6	D5	2708417	71007	64	25	6	3
8	D5	2950778	71011	69	29	8	3
12	D6	2708362	71019	86	42	9	3
12	D5	2708369	71017	86	42	9	3
10	D5	3108135	71013	75	32	10	3
10	D6	2708383	71015	75	32	10	3
