Series CPDM-2 Drill Mill

Specialty Application End Mills

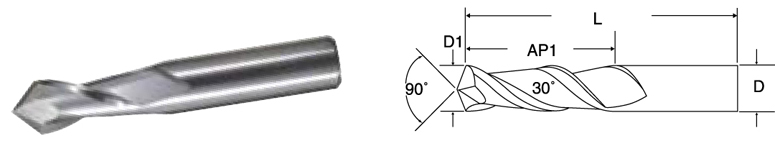

Series CPDM-2 Drill Mill

2 flutes 90° point 10% cobalt submicron grain carbide substrate Uncoated tools standard; coated tools available as a modification CLICK TOOL NUMBERS TO ORDER
D1	D	AP1	L	Uncoated
1/8	1/8	1/2	1-1/2	M30030
3/16	3/16	5/8	2	M30031
1/4	1/4	3/4	2-1/2	M30032
5/16	5/16	13/16	2-1/2	M30040
3/8	3/8	1	2-1/2	M30041
7/16	7/16	1	2-3/4	M30042
1/2	1/2	1	3	M30050
5/8	5/8	1-1/4	3-1/2	M30051
3/4	3/4	1-1/2	4	M30052
