Single End with Ball Nose for Stainless Steels CS-3B

High-Performance End Mills
Single End with Ball Nose for Stainless Steels CS-3B

3-flute, right-hand spiral, right-hand cut Medium helix for freer cutting and better chip control Reinforced core diameter for added strength Center cutting Ball-nose end geometry for rapid chip evacuation in plunge cutting Uncoated, TiCN coated, and TiAlN coated standard; other coatings available as a modification CLICK TOOL NUMBERS TO ORDER

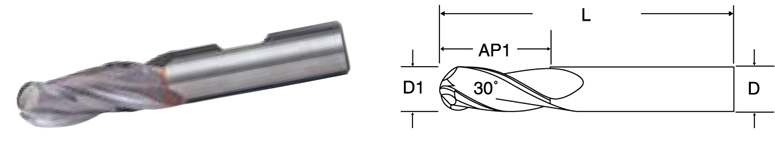

D1	D	AP1	L	Uncoated	TiCN Coated	TiAIN Coated
1/8	1/8	1/4	1-1/2	M32550	M32155	M31986
1/8	1/8	1/2	1-1/2	M32431	M31964	M31626
3/16	3/16	5/16	2	M32551	M32164	M31996
3/16	3/16	9/16	2	M32432	M31965	M31636
1/4	1/4	3/8	2	M32552	M32165	M32016
1/4	1/4	3/4	2-1/2	M32440	M31974	M31646
5/16	5/16	7/16	2	M32560	M32174	M32026
5/16	5/16	13/16	2-1/2	M32441	M31975	M31656
3/8	3/8	1/2	2	M32561	M32175	M32046
3/8	3/8	7/8	2-1/2	M32442	M31984	M31666
7/16	7/16	9/16	2-1/2	M32562	M32184	M32056
7/16	7/16	1	2-1/2	M32450	M31985	M31676
1/2	1/2	5/8	2-1/2	M32570	M32185	M32076
1/2	1/2	1-1/4	3	M32451	M31994	M31686
5/8	5/8	3/4	3	M32571	M32194	M32086
5/8	5/8	1-1/4	3-1/2	M32452	M32005	M31696
5/8	5/8	1-5/8	4	M36352	M35364	M35606
3/4	3/4	7/8	3	M32572	M32195	M32096
3/4	3/4	1-5/8	4	M32460	M32014	M31706
1	1	1-1/8	3	M32580	M32204	M32106
1	1	2	4	M32461	M32015	M31716
