Single End for Long Reach in Aluminum CXA-2P

High-Performance End Mills

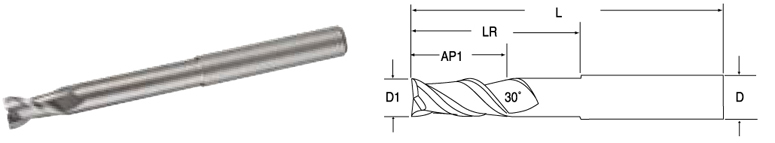

Single End for Long Reach in Aluminum CXA-2P

2-flute Without neck clearance 10% micron grain Center cuttings Uncoated and TiCN coated standard; other coatings available as a modification CLICK TOOL NUMBERS TO ORDER
D1	D	AP1	L	Uncoated	TiCN Coated
1/8	1/8	1/4	3	M30060	M30034
3/16	3/16	1/4	3	M30061	M30035
1/4	1/4	3/8	4	M30062	M30044
5/16	5/16	7/16	4	M30070	M30045
3/8	3/8	1/2	4	M30071	M30054
1/2	1/2	5/8	5	M30072	M30055
5/8	5/8	3/4	5	M30080	M30064
5/8	5/8	3/4	8	M30081	M30065
3/4	3/4	1	6	M30082	M30074
3/4	3/4	1	8	M30090	M30075
1	1	1-1/8	6	M30091	M30084
1	1	1-1/8	8	M30092	M30085
