Numertap 6000 TAP ADAPTERS


Numertap 6000 Tap Adapter 6-150N shown here.



For use in Numertap 6000 Attachments.

    CLICK TOOL NUMBERS TO ORDER

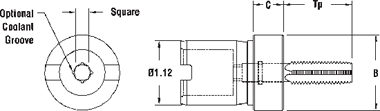

Part Number Coolant** Coolant Groove** Tap Size Metric Tap Size (ANSI*) B C Tp Shank Square
6-075 6-075C 6-075CG 3/4 M19 2.50 1.00 2.21 .590 .442
6-081 6-081C 6-081CG 3/16 M20 2.50 1.00 2.43 .652 .489
6-087 6-087C 6-087CG 7/8 M22 2.50 1.00 2.59 .697 .523
6-093 6-093C 6-093CG 15/16 M24 2.50 1.00 2.61 .760 .570
6-100 6-100C 6-100CG 1 M25 2.50 1.00 2.76 .800 .600
6-106 6-106C 6-106CG 1 1/16 & 1 1/8 M27 2.50 1.00 2.70/3.01 .896 .672
6-118 6-118C 6-118CG 1 3/16 & 1 1/4 M30 2.50 1.00 2.84/3.15 1.021 .766
6-131 6-131C 6-131CG 1 5/16 & 1 3/8 M33 2.50 1.00 3.09/3.40 1.108 .831
6-144 6-144C 6-144CG 1 7/16 & 1 1/2 M36 2.50 1.00 3.34/3.65 1.233 .925
6-162 6-162C 6-162CG 1 5/8 M39 2.50 1.00 3.96 1.305 .979
6-175 6-175C 6-175CG 1 3/4 M42 3.20 1.00 4.15 1.430 1.072
6-187 6-187C 6-187CG 1 7/8 M45 3.20 1.00 4.46 1.519 1.139
6-200 6-200C 6-200CG 2 M48 3.20 1.00 5.13 1.644 1.233
6-212 6-212C 6-212CG 2 1/8 - 3.20 3.10 5.50 1.769 1.327
6-225 6-225C 6-225CG 2 1/4 M56 3.20 3.10 5.71 1.894 1.420
6-237 6-237C 6-237CG 2 3/8 - 3.20 3.10 5.96 2.018 1.524
6-250 6-250C 6-250CG 2 1/2 - 3.40 3.10 6.15 2.100 1.585
6-037N 6-037NC 6-037NCG 3/8 NPT - 2.50 1.00 1.06 .700 .531
6-050N 6-050NC 6-050NCG 1/2 NPT - 2.50 1.00 1.50 .687 .515
6-075N 6-075NC 6-075NCG 3/4 NPT - 2.50 1.00 1.56 .906 .679
6-100N 6-100NC 6-100NCG 1 NPT - 2.50 1.00 1.89 1.125 .843
6-125N 6-125NC 6-125NCG 1 1/4 NPT - 2.50 1.00 1.96 1.312 .984
6-150N 6-150NC 6-150NCG 1 1/2 NPT - 2.50 1.00 2.05 1.500 1.125
6-200N 6-200NC 6-200NCG 2 NPT - 3.20 3.10 2.20 1.875 1.406
*For DIN, ISO, or Imperial Metric Shanks, please call Parlec or your local Parlec representative.
**Coolant requires oil hole tap. Coolant groove uses standard taps. Both require coolant-fed unit. NUMERTAP torque controlled adapters require no adjustment. Each adapter is calibrated for approximately 80% of the tap breakage torque for most standard hand, plug, or bottom taps
