Tool Speed Calculator
Balanceable Modular Boring Kit






    CLICK TOOL NUMBERS TO ORDER
BORING NOSES
Part Number Qty Description
BN8X9 1 Boring Nose
BN10X13 1 Boring Nose
BN12X17 1 Boring Nose
BN14X21 1 Boring Nose
BN16X24 1 Boring Nose
BN16X29 1 Boring Nose
BN16X33 1 Boring Nose
BN16X37 1 Boring Nose
BN16X41 1 Boring Nose
BORING BARS
Part Number Qty Description
BSS625 1 Steel 5/8" Boring Bar
INSERTS
Part Number Qty Description
T1104TANF66 5 TCMT11 / TAN 1
T1104CT15F66 5 TCMT11 / CT15
T0604TANF66 5 TP06 / TAN 1
T0604CT15F66 5 TP06 / CT15
BORING HEAD
Part Number Qty Description
PC6-20SDE62BB 1 Balanceable Boring head
BORING KIT CASE
Part Number Qty Description
902.152 1 Boring Tool Kit Case
WRENCHES
Part Number Qty Description
018-105 1 5mm Hex T-Handle
018-206 1 6mm Hex Short Arm
018-007 1 T6 Torx
018-006 1 T7 Torx
SMALL DIAMETER BALANCEABLE BORING TOOLS INCH GRADATION UNITS
Part Number Bore Range Min. Bore Range Max. Connection Size A B C Weight
PC6-20SDE62BB 0.079"(2mm) 1.77"(45mm) PC6 5/8" 2.52" (64MM) 2.24" (57MM) 3.15lbs(1.43kg)

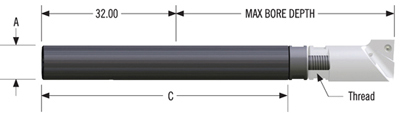

MODULAR BORING NOSES
Part Number Min. Dia. Recommended Max. Dia. Extended Max. Dia. Insert Size Insert Screw Insert Screw Wrench Use w/Bar Size Wrench Size
BN8X9 .354"(9mm) .512"(13mm) .669"(17mm) TP06 028-909 018-006 8mm 6mm
BN10X13 .512"(13mm) .699"(17mm) .827"(21mm) TP06 028-909 018-006 10mm 8mm
BN12X17 .669"(17mm) .827"(21mm) .984"(25mm) TCMT11 812-458 018-007 12mm 10mm
BN14X21 .827"(21mm) .984"(25mm) 1.142"(29mm) TCMT11 812-458 018-007 14mm 12mm
BN16X25 .984"(25mm) 1.142"(29mm) 1.299"(33mm) TCMT11 028-905 018-007 16mm or 5/8" 14mm
BN16X29 1.142"(29mm) 1.299"(33mm) 1.457"(37mm) TCMT11 028-905 018-007 16mm or 5/8" 14mm
BN16X33 1.299"(33mm) 1.457"(37mm) 1.614"(41mm) TCMT11 028-905 018-007 16mm or 5/8" 14mm
BN16X37 1.457"(37mm) 1.614"(41mm) 1.772"(45mm) TCMT11 028-905 018-007 16mm or 5/8" 14mm
BN16X41 1.614"(41mm) 1.772"(45mm) 1.890"(48mm) TCMT11 028-905 018-007 16mm or 5/8" 14mm
