CV40 CV50 • SSF Steep Taper Adapters


.

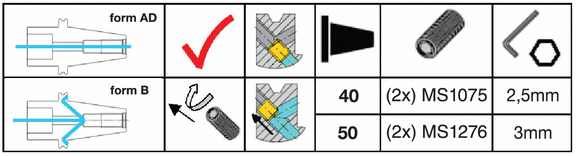

SSF-CV Form B/AD

    CLICK TOOL NUMBERS TO ORDER

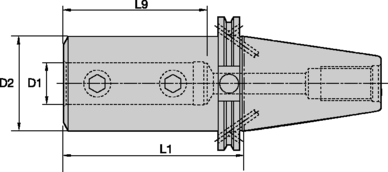

order number catalog number D1 D2 L1 L9 lbs. clamp screw wrench size-clamp screw ft.lbs
1749368 CV40BSSF075275 3/4 1.750 2.750 2.250   2.78 ELS062050PKG 5/16   70
1749472 CV50BSSF075275 3/4 1.750 2.750 2.250   7.22 ELS062050PKG 5/16   70
1749473 CV50BSSF100400 1 2.000 4.000 3.250   8.05 DWG ELS075050 3/8 110
1749369 CV40BSSF100450 1 2.000 4.500 3.250   4.12 DWG ELS075050 3/8 110
1749474 CV50BSSF125400 1 1/4 2.500 4.000 3.500   8.86 ELS075056PKG 3/8 110
1749370 CV40BSSF125475 1 1/4 2.500 4.750 3.500   5.44 ELS075056PKG 3/8 110
1749475 CV50BSSF150450 1 1/2 2.750 4.500 4.000   9.67 ELS075056PKG 3/8 110
1749471 CV40BSSF150575 1 1/2 2.750 5.748 4.000   7.01 ELS075056PKG 3/8 110
1749209 CV50BSSF200550 2 3.750 5.500 4.250 15.23 ELS100088PKG 1/2 150
NOTE: Order retention knob separately.
