Indexable Drills

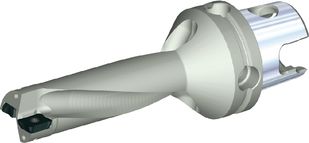

Top Cut™ Drill • Inch • 3 x D • KM40TS™ |
|
|
|
 |
|
- Drill shipped with insert screws, side pipe plug, and Torx wrench.
|
| order number |

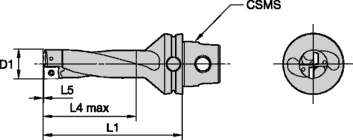

catalog number |
D1 |
L1 |
L4 max |
L5 |
CSMS system size |
gage
insert |
insert
screw |
Torx
driver |
Torx
driver |
Torx
size |
| 3898334 |
KM40TSTCD0438R3 |
.438 |
2.375 |
1.314 |
.009 |
KM40TS |
LPGX06T103 |
12146011800 |
|
12146010000 |
T5 |
| 3898335 |
KM40TSTCD0469R3 |
.469 |
2.500 |
1.407 |
.009 |
KM40TS |
LPGX06T103 |
12146011800 |
|
12146010000 |
T5 |
| 3898336 |
KM40TSTCD0500R3 |
.500 |
2.500 |
1.500 |
.002 |
KM40TS |
LPGX06T103 |
12146011800 |
|
12146010000 |
T5 |
| 3898337 |
KM40TSTCD0531R3 |
.531 |
2.625 |
1.593 |
.003 |
KM40TS |
LPGX06T103 |
12146011800 |
|
12146010000 |
T5 |
| 3898338 |
KM40TSTCD0563R3 |
.563 |
2.750 |
1.689 |
.003 |
KM40TS |
LPGX07T204 |
12146012500 |
12147549000 |
|
T7 |
| 3898339 |
KM40TSTCD0594R3 |
.594 |
2.875 |
1.782 |
.002 |
KM40TS |
LPGX07T204 |
12146012500 |
12147549000 |
|
T7 |
| 3898340 |
KM40TSTCD0625R3 |
.625 |
3.000 |
1.875 |
.002 |
KM40TS |
LPGX07T204 |
12146012500 |
12147549000 |
|
T7 |
| 3898341 |
KM40TSTCD0656R3 |
.656 |
3.125 |
1.968 |
.007 |
KM40TS |
LPGX07T204 |
12146012500 |
12147549000 |
|
T7 |
| 3898342 |
KM40TSTCD0688R3 |
.688 |
3.250 |
2.064 |
.012 |
KM40TS |
LPGX07T204 |
12146012500 |
12147549000 |
|
T7 |
| 3898353 |
KM40TSTCD0719R3 |
.719 |
3.375 |
2.157 |
.012 |
KM40TS |
LPGX07T204 |
12146012500 |
12147549000 |
|
T7 |
| 3898354 |
KM40TSTCD0750R3 |
.750 |
3.500 |
2.250 |
.002 |
KM40TS |
LPGX100308 |
12148068700 |
|
12148086600 |
T8 |
| 3898370 |
KM40TSTCD0813R3 |
.813 |
3.875 |
2.439 |
.004 |
KM40TS |
LPGX100308 |
12148068700 |
|
12148086600 |
T8 |
| 3898371 |
KM40TSTCD0875R3 |
.875 |
4.000 |
2.625 |
.011 |
KM40TS |
LPGX100308 |
12148068700 |
|
12148086600 |
T8 |
| 3898372 |
KM40TSTCD0938R3 |
.938 |
4.250 |
2.814 |
.018 |
KM40TS |
LPGX100308 |
12148068700 |
|
12148086600 |
T8 |
| 3898373 |
KM40TSTCD1000R3 |
1.000 |
4.375 |
3.000 |
.018 |
KM40TS |
LPGX100308 |
12148068700 |
|
12148086600 |
T8 |
WARNING
During
through-hole operations, a slug or disc is produced as the tool breaks
through the workpiece.
When the drill is stationary and the workpiece is
rotating, this slug may be hurled from the chuck by centrifugal force.
Provide adequate shielding to protect bystanders. |
|
|
