Indexable Drills
Top Cut™ Drill Inserts - LPGX-34 |
|
|
|
  |
| P |
● |
● |
○ |
| M |
● |
|
● |
| K |
○ |
|
○ |
| N |
|
|
|
| S |
○ |
|
|
| H |
|
|
|
|
TN6030 |
TN7015 |
TPC35 |
● first choice
○ alternate choice
|
|

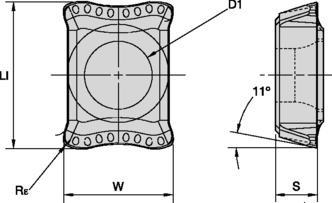

| LI
| W
| D1
| S
| Rε
|
| order number |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
| LPGX06T10334 |
6,00 |
.236 |
4,50 |
.177 |
2,10 |
.083 |
1,99 |
.078 |
0,30 |
.012 |
| LPGX07T20434 |
7,50 |
.295 |
6,00 |
.236 |
2,50 |
.098 |
2,78 |
.109 |
0,40 |
.016 |
| LPGX10030834 |
10,00 |
.394 |
8,00 |
.315 |
2,80 |
.110 |
3,18 |
.125 |
0,80 |
.031 |
|
|
