Modular Drills

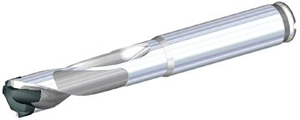

Victory TOP DRILL M1 3 x D Straight


round shank (no flats)

  • Tool body shipped with insert wrench.

    CLICK TOOL NUMBERS TO ORDER

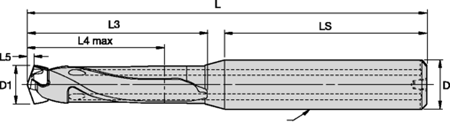

order number catalog number D1 D1 max D L L3 L4 max L5 LS insert blade seat size
3851478 TDM0313R3SS038 .313   .334   .3750 3.13 1.42 1.00 .06 1.59 W10
3851480 TDM0335R3SS038 .335   .354   .3750 3.25 1.54 1.06 .07 1.59 W11
3851482 TDM0354R3SS038 .354   .374   .3750 3.38 1.67 1.12 .07 1.59 W12
3851545 TDM0374R3SS044 .374   .393   .4375 3.38 1.59 1.18 .07 1.67 W13
3851544 TDM0374R3SS038 .374   .393   .3750 3.38 1.67 1.18 .07 1.59 W13
3851548 TDM0394R3SS044 .394   .413   .4375 3.63 1.84 1.24 .08 1.67 W14
3851550 TDM0413R3SS044 .413   .433   .4375 3.75 1.96 1.30 .08 1.67 W15
3851552 TDM0433R3SS044 .433   .452   .4375 3.88 2.09 1.36 .08 1.67 W16
3851554 TDM0453R3SS050 .453   .472   .5000 3.88 1.97 1.42 .09 1.79 W17
3851556 TDM0472R3SS050 .472   .492   .5000 4.00 2.88 1.48 .09 1.79 W18
3851559 TDM0492R3SS056 .492   .511   .5625 4.13 2.22 1.54 .10 1.79 W19
3851558 TDM0492R3SS050 .492   .511   .5000 4.13 2.22 1.54 .10 1.79 W19
3851562 TDM0512R3SS056 .512   .531   .5625 4.25 2.34 1.60 .10 1.79 W20
3851564 TDM0532R3SS056 .532   .551   .5625 4.25 2.34 1.65 .10 1.79 W21
3851566 TDM0551R3SS056 .551   .571   .5625 4.50 2.59 1.71 .11 1.79 W22
3851568 TDM0571R3SS063 .571   .590   .6250 4.50 2.47 1.77 .11 1.91 W23
3851570 TDM0591R3SS063 .591   .630   .6250 4.75 2.72 1.89 .11 1.91 W24
3851572 TDM0630R3SS069 .630   .669   .6875 4.88 2.85 2.01 .12 1.91 W25
3851574 TDM0669R3SS069 .669   .708   .6875 5.00 2.97 2.12 .13 1.91 W26
3851576 TDM0709R3SS075 .709   .748   .7500 5.25 3.13 2.24 .14 2.00 W27
3851578 TDM0748R3SS075 .748   .787   .7500 5.50 3.38 2.36 .14 2.00 W28
3851580 TDM0787R3SS081 .787   .826   .8125 5.75 3.63 2.48 .15 2.00 W29
3992477 TDM0827R3SS088 .827   .866   .8750 5.87 3.69 2.60 .15 2.07 W30
3992478 TDM0866R3SS088 .866   .905   .8750 6.00 3.81 2.72 .15 2.07 W31
3992479 TDM0906R3SS094 .906   .945   .9375 6.25 3.98 2.83 .17 2.15 W32
3992480 TDM0945R3SS100 .945   .984 1.0000 7.25 4.13 2.95 .17 3.00 W33
3992481 TDM0984R3SS100 .984 1.023 1.0000 7.37 4.26 3.07 .18 3.00 W34
