Modular Drills

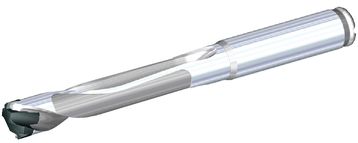

Victory TOP DRILL M1 5 x D Straight


round shank (no flats)

  • Tool body shipped with insert wrench.

    CLICK TOOL NUMBERS TO ORDER

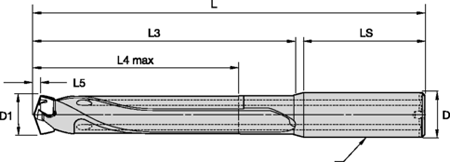

order number catalog number D1 D1 max D L L3 L4 max L5 LS insert blade seat size
3851479 TDM0313R5SS038 .313   .334   .3750 3.88 2.17 1.67 .060 1.59 W10
3851481 TDM0335R5SS038 .335   .354   .3750 4.00 2.29 1.77 .065 1.59 W11
3851543 TDM0354R5SS038 .354   .374   .3750 4.13 2.42 1.87 .069 1.59 W12
3851546 TDM0374R5SS038 .374   .393   .3750 4.25 2.54 1.97 .072 1.59 W13
3851547 TDM0374R5SS044 .374   .393   .4375 4.38 2.59 1.97 .072 1.67 W13
3851549 TDM0394R5SS044 .394   .413   .4375 4.63 2.84 2.07 .076 1.67 W14
3851551 TDM0413R5SS044 .413   .433   .4375 4.75 2.96 2.16 .081 1.67 W15
3851553 TDM0433R5SS044 .433   .452   .4375 4.88 3.09 2.26 .084 1.67 W16
3851555 TDM0453R5SS050 .453   .472   .5000 5.00 3.09 2.36 .086 1.79 W17
3851557 TDM0472R5SS050 .472   .492   .5000 5.00 3.09 2.46 .092 1.79 W18
3851560 TDM0492R5SS050 .492   .511   .5000 5.13 3.22 2.56 .095 1.79 W19
3851561 TDM0492R5SS056 .492   .511   .5625 5.13 3.22 2.56 .095 1.79 W19
3851563 TDM0512R5SS056 .512   .531   .5625 5.25 3.34 2.66 .098 1.79 W20
3851565 TDM0532R5SS056 .532   .551   .5625 5.50 3.59 2.75 .104 1.79 W21
3851567 TDM0551R5SS056 .551   .571   .5625 5.75 3.84 2.85 .107 1.79 W22
3851569 TDM0571R5SS063 .571   .590   .6250 5.75 3.72 2.95 .109 1.91 W23
3851571 TDM0591R5SS063 .591   .630   .6250 6.00 3.97 3.15 .113 1.91 W24
3851573 TDM0630R5SS069 .630   .669   .6875 6.25 4.22 3.34 .119 1.91 W25
3851575 TDM0669R5SS069 .669   .708   .6875 6.50 4.47 3.54 .127 1.91 W26
3851577 TDM0709R5SS075 .709   .748   .7500 6.88 4.76 3.74 .136 2.00 W27
3851579 TDM0748R5SS075 .748   .787   .7500 7.13 5.01 3.94 .142 2.00 W28
3851581 TDM0787R5SS081 .787   .826   .8125 7.50 5.38 4.13 .150 2.00 W29
3992503 TDM0827R5SS088 .827   .866   .8750 7.63 5.44 4.33 .150 2.07 W30
3992504 TDM0866R5SS088 .866   .905   .8750 7.87 5.69 4.53 .154 2.07 W31
3992505 TDM0906R5SS094 .906   .945   .9375 8.25 5.98 4.72 .165 2.15 W32
3992506 TDM0945R5SS100 .945   .984 1.0000 9.37 6.26 4.92 .169 3.00 W33
3992507 TDM0984R5SS100 .984 1.023 1.0000 9.63 6.51 5.12 .177 3.00 W34
