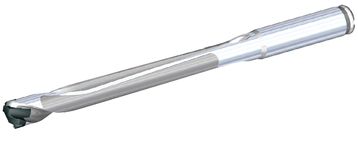

Victory TOP DRILL M1 8 x D Straight


round shank (no flats)

  • Tool body shipped with insert wrench.

    CLICK TOOL NUMBERS TO ORDER

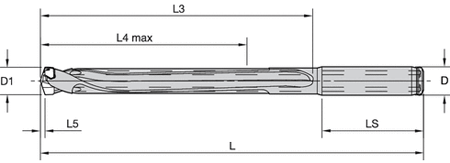

order number catalog number D1 D1 max D L L3 L4 max L5 LS insert blade seat size
3992536 TDM0313R8SS038 .313   .334   .3750   4.87 3.17 2.68 .055 1.59 W10
3992537 TDM0335R8SS038 .335   .354   .3750   5.13 3.42 2.83 .063 1.59 W11
3992538 TDM0354R8SS038 .354   .374   .3750   5.25 3.55 2.99 .063 1.59 W12
3992539 TDM0374R8SS038 .374   .393   .3750   5.37 3.67 3.15 .067 1.59 W13
3992540 TDM0374R8SS044 .374   .393   .4375   5.37 3.59 3.15 .067 1.67 W13
3992541 TDM0394R8SS044 .394   .413   .4375   5.75 3.96 3.31 .071 1.67 W14
3992542 TDM0413R8SS044 .413   .433   .4375   6.00 4.21 3.46 .075 1.67 W15
3992543 TDM0433R8SS044 .433   .452   .4375   6.25 4.46 3.62 .079 1.67 W16
3992544 TDM0453R8SS050 .453   .472   .5000   6.50 4.56 3.78 .083 1.79 W17
3992545 TDM0472R8SS050 .472   .492   .5000   6.75 4.84 3.94 .087 1.79 W18
3992546 TDM0492R8SS050 .492   .511   .5000   7.00 5.08 4.09 .091 1.79 W19
3992547 TDM0492R8SS056 .492   .511   .5625   7.00 5.08 4.09 .091 1.79 W19
3992548 TDM0512R8SS056 .512   .531   .5625   7.13 5.22 4.25 .091 1.79 W20
3992549 TDM0532R8SS056 .532   .551   .5625   7.25 5.34 4.41 .098 1.79 W21
3992550 TDM0551R8SS056 .551   .571   .5625   7.37 5.47 4.57 .098 1.79 W22
3992551 TDM0571R8SS063 .571   .590   .6250   7.50 5.47 4.72 .102 1.91 W23
3992552 TDM0591R8SS063 .591   .630   .6250   7.75 5.72 5.04 .106 1.91 W24
3992553 TDM0630R8SS069 .630   .669   .6875   8.00 5.97 5.35 .114 1.91 W25
3992554 TDM0669R8SS069 .669   .708   .6875   8.75 6.72 5.67 .118 1.91 W26
3992555 TDM0709R8SS075 .709   .748   .7500   9.25 7.13 5.98 .126 2.00 W27
3992556 TDM0748R8SS075 .748   .787   .7500   9.63 7.51 6.30 .134 2.00 W28
3992557 TDM0787R8SS081 .787   .826   .8125 10.00 7.88 6.61 .142 2.00 W29
3992558 TDM0827R8SS088 .827   .866   .8750 10.25 8.06 6.93 .150 2.07 W30
3992559 TDM0866R8SS088 .866   .905   .8750 10.63 8.44 7.24 .154 2.07 W31
3992560 TDM0906R8SS094 .906   .945   .9375 11.13 8.86 7.56 .165 2.15 W32
3992561 TDM0945R8SS100 .945   .984 1.0000 12.25 9.13 7.87 .169 3.00 W33
3992562 TDM0984R8SS100 .984 1.023 1.0000 12.63 9.51 8.19 .177 3.00 W34
