Modular Drills
Victory TOP DRILL M1™ Inserts |
|
|
|
  |
| P |
● |
| M |
|
| K |
● |
| N |
|
| S |
|
| H |
|
|
K20FTiAlN |
● first choice
○ alternate choice
|
|
| order number |
ISO
catalog number |
ANSI catalog number |

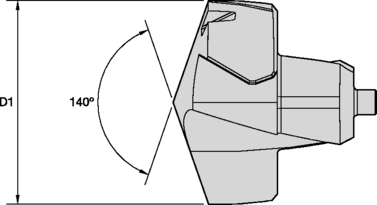

D1 mm |
D1 in |
seat size/series |
| 3849087 |
TDM1410UPM |
TDM1410UPM |
14,10 |
.555 |
W22 |
| 3849088 |
TDM1420UPM |
TDM1420UPM |
14,20 |
.559 |
W22 |
| 3850994 |
TDM1429UPM |
TDM05625UP |
14,29 |
.563 |
W22 |
| 3849089 |
TDM1430UPM |
TDM1430UPM |
14,30 |
.563 |
W22 |
| 3849090 |
TDM1440UPM |
TDM1440UPM |
14,40 |
.567 |
W22 |
| 3849091 |
TDM1450UPM |
TDM1450UPM |
14,50 |
.571 |
W23 |
| 3849092 |
TDM1460UPM |
TDM1460UPM |
14,60 |
.575 |
W23 |
| 3850995 |
TDM1467UPM |
TDM05774UP |
14,67 |
.577 |
W23 |
| 3850996 |
TDM1468UPM |
TDM05781UP |
14,68 |
.578 |
W23 |
| 3849093 |
TDM1470UPM |
TDM1470UPM |
14,70 |
.579 |
W23 |
| 3849094 |
TDM1480UPM |
TDM1480UPM |
14,80 |
.583 |
W23 |
| 3849095 |
TDM1490UPM |
TDM1490UPM |
14,90 |
.587 |
W23 |
| 3849096 |
TDM1500UPM |
TDM1500UPM |
15,00 |
.591 |
W24 |
| 3850997 |
TDM1508UPM |
TDM05938UP |
15,08 |
.594 |
W24 |
| 3849097 |
TDM1510UPM |
TDM1510UPM |
15,10 |
.595 |
W24 |
| 3849098 |
TDM1520UPM |
TDM1520UPM |
15,20 |
.598 |
W24 |
| 3849099 |
TDM1530UPM |
TDM1530UPM |
15,30 |
.602 |
W24 |
| 3849100 |
TDM1540UPM |
TDM1540UPM |
15,40 |
.606 |
W24 |
| 3850998 |
TDM1548UPM |
TDM06094UP |
15,48 |
.609 |
W24 |
| 3849101 |
TDM1550UPM |
TDM1550UPM |
15,50 |
.610 |
W24 |
| 3849102 |
TDM1560UPM |
TDM1560UPM |
15,60 |
.614 |
W24 |
| 3849103 |
TDM1570UPM |
TDM1570UPM |
15,70 |
.618 |
W24 |
| 3849104 |
TDM1580UPM |
TDM1580UPM |
15,80 |
.622 |
W24 |
| 3850999 |
TDM1588UPM |
TDM06250UP |
15,88 |
.625 |
W24 |
| 3849105 |
TDM1600UPM |
TDM1600UPM |
16,00 |
.630 |
W25 |
| 3851000 |
TDM1603UPM |
TDM06310UP |
16,03 |
.631 |
W25 |
| 3851001 |
TDM1608UPM |
TDM06330UP |
16,08 |
.633 |
W25 |
| 3849106 |
TDM1610UPM |
TDM1610UPM |
16,10 |
.634 |
W25 |
| 3849107 |
TDM1620UPM |
TDM1620UPM |
16,20 |
.638 |
W25 |
| 3851002 |
TDM1627UPM |
TDM06406UP |
16,27 |
.641 |
W25 |
| 3849108 |
TDM1630UPM |
TDM1630UPM |
16,30 |
.642 |
W25 |
| 3849109 |
TDM1640UPM |
TDM1640UPM |
16,40 |
.646 |
W25 |
| 3849110 |
TDM1650UPM |
TDM1650UPM |
16,50 |
.650 |
W25 |
| 3849111 |
TDM1660UPM |
TDM1660UPM |
16,60 |
.654 |
W25 |
| 3851003 |
TDM1667UPM |
TDM06562UP |
16,67 |
.656 |
W25 |
| 3849112 |
TDM1670UPM |
TDM1670UPM |
16,70 |
.658 |
W25 |
| 3849113 |
TDM1680UPM |
TDM1680UPM |
16,80 |
.661 |
W25 |
| 3851004 |
TDM1687UPM |
TDM06643UP |
16,87 |
.664 |
W25 |
| 3849114 |
TDM1690UPM |
TDM1690UPM |
16,90 |
.665 |
W25 |
| 3849119 |
TDM1700UPM |
TDM1700UPM |
17,00 |
.669 |
W26 |
| 3851005 |
TDM1707UPM |
TDM06719UP |
17,07 |
.672 |
W26 |
| 3849120 |
TDM1710UPM |
TDM1710UPM |
17,10 |
.673 |
W26 |
| 3849121 |
TDM1720UPM |
TDM1720UPM |
17,20 |
.677 |
W26 |
| 3849122 |
TDM1730UPM |
TDM1730UPM |
17,30 |
.681 |
W26 |
| 3849193 |
TDM1740UPM |
TDM1740UPM |
17,40 |
.685 |
W26 |
| 3851006 |
TDM1746UPM |
TDM06875UP |
17,46 |
.688 |
W26 |
| 3849194 |
TDM1750UPM |
TDM1750UPM |
17,50 |
.689 |
W26 |
| 3849195 |
TDM1760UPM |
TDM1760UPM |
17,60 |
.693 |
W26 |
| 3849196 |
TDM1770UPM |
TDM1770UPM |
17,70 |
.697 |
W26 |
| 3849197 |
TDM1780UPM |
TDM1780UPM |
17,80 |
.701 |
W26 |
| 3851007 |
TDM1786UPM |
TDM07031UP |
17,86 |
.703 |
W26 |
| 3849198 |
TDM1790UPM |
TDM1790UPM |
17,90 |
.705 |
W26 |
| 3849199 |
TDM1800UPM |
TDM1800UPM |
18,00 |
.709 |
W27 |
| 3849200 |
TDM1810UPM |
TDM1810UPM |
18,10 |
.713 |
W27 |
| 3849201 |
TDM1820UPM |
TDM1820UPM |
18,20 |
.717 |
W27 |
| 3851008 |
TDM1826UPM |
TDM07188UP |
18,26 |
.719 |
W27 |
| 3849202 |
TDM1830UPM |
TDM1830UPM |
18,30 |
.721 |
W27 |
| 3849203 |
TDM1840UPM |
TDM1840UPM |
18,40 |
.724 |
W27 |
| 3849204 |
TDM1850UPM |
TDM1850UPM |
18,50 |
.728 |
W27 |
| 3849205 |
TDM1860UPM |
TDM1860UPM |
18,60 |
.732 |
W27 |
| 3851009 |
TDM1865UPM |
TDM07344UP |
18,65 |
.734 |
W27 |
| 3849206 |
TDM1870UPM |
TDM1870UPM |
18,70 |
.736 |
W27 |
| 3849207 |
TDM1880UPM |
TDM1880UPM |
18,80 |
.740 |
W27 |
| 3849208 |
TDM1890UPM |
TDM1890UPM |
18,90 |
.744 |
W27 |
| 3849209 |
TDM1900UPM |
TDM1900UPM |
19,00 |
.748 |
W28 |
| 3851010 |
TDM1905UPM |
TDM07500UP |
19,05 |
.750 |
W28 |
| 3849210 |
TDM1910UPM |
TDM1910UPM |
19,10 |
.752 |
W28 |
| 3849211 |
TDM1920UPM |
TDM1920UPM |
19,20 |
.756 |
W28 |
| 3851011 |
TDM1923UPM |
TDM07570UP |
19,23 |
.757 |
W28 |
| 3851012 |
TDM1925UPM |
TDM07580UP |
19,25 |
.758 |
W28 |
| 3851013 |
TDM1928UPM |
TDM07590UP |
19,28 |
.759 |
W28 |
| 3849212 |
TDM1930UPM |
TDM1930UPM |
19,30 |
.760 |
W28 |
| 3851014 |
TDM1935UPM |
TDM07620UP |
19,35 |
.762 |
W28 |
| 3849213 |
TDM1940UPM |
TDM1940UPM |
19,40 |
.764 |
W28 |
| 3851015 |
TDM1945UPM |
TDM07656UP |
19,45 |
.766 |
W28 |
| 3849214 |
TDM1950UPM |
TDM1950UPM |
19,50 |
.768 |
W28 |
| 3849215 |
TDM1960UPM |
TDM1960UPM |
19,60 |
.772 |
W28 |
| 3849216 |
TDM1970UPM |
TDM1970UPM |
19,70 |
.776 |
W28 |
| 3849217 |
TDM1980UPM |
TDM1980UPM |
19,80 |
.780 |
W28 |
| 3851016 |
TDM1984UPM |
TDM07812UP |
19,84 |
.781 |
W28 |
| 3849218 |
TDM1990UPM |
TDM1990UPM |
19,90 |
.784 |
W28 |
| 3849219 |
TDM2000UPM |
TDM2000UPM |
20,00 |
.788 |
W29 |
| 3849220 |
TDM2010UPM |
TDM2010UPM |
20,10 |
.791 |
W29 |
| 3849221 |
TDM2020UPM |
TDM2020UPM |
20,20 |
.795 |
W29 |
| 3851017 |
TDM2024UPM |
TDM07969UP |
20,24 |
.797 |
W29 |
| 3849222 |
TDM2030UPM |
TDM2030UPM |
20,30 |
.799 |
W29 |
| 3849223 |
TDM2040UPM |
TDM2040UPM |
20,40 |
.803 |
W29 |
| 3849224 |
TDM2050UPM |
TDM2050UPM |
20,50 |
.807 |
W29 |
| 3849225 |
TDM2060UPM |
TDM2060UPM |
20,60 |
.811 |
W29 |
| 3851018 |
TDM2064UPM |
TDM08125UP |
20,64 |
.813 |
W29 |
| 3849226 |
TDM2070UPM |
TDM2070UPM |
20,70 |
.815 |
W29 |
| 3849227 |
TDM2080UPM |
TDM2080UPM |
20,80 |
.819 |
W29 |
| 3849228 |
TDM2090UPM |
TDM2090UPM |
20,90 |
.823 |
W29 |
| 3849229 |
TDM2099UPM |
TDM2099UPM |
20,99 |
.826 |
W29 |
| 4003225 |
TDM2100UPM |
TDM2100UPM |
21,00 |
.827 |
W30 |
| 3969291 |
TDM2150UPM |
TDM2150UPM |
21,50 |
.846 |
W30 |
| 4003226 |
TDM2200UPM |
TDM2200UPM |
22,00 |
.866 |
W31 |
| 4003204 |
TDM2223UPM |
TDM08750UP |
22,23 |
.875 |
W31 |
| 4003205 |
TDM2245UPM |
TDM08840UP |
22,45 |
.884 |
W31 |
| 4003227 |
TDM2250UPM |
TDM2250UPM |
22,50 |
.887 |
W31 |
| 4003228 |
TDM2300UPM |
TDM2300UPM |
23,00 |
.906 |
W32 |
| 4003229 |
TDM2350UPM |
TDM2350UPM |
23,50 |
.925 |
W32 |
| 4003206 |
TDM2381UPM |
TDM09375UP |
23,81 |
.938 |
W32 |
| 4003230 |
TDM2400UPM |
TDM2400UPM |
24,00 |
.945 |
W33 |
| 4003203 |
TDM2144UPM |
TDM08440UP |
21,44 |
.844 |
W30 |
| 4003231 |
TDM2450UPM |
TDM2450UPM |
24,50 |
.965 |
W33 |
| 4003207 |
TDM2461UPM |
TDM09690UP |
24,61 |
.969 |
W33 |
| 4003232 |
TDM2500UPM |
TDM2500UPM |
25,00 |
.984 |
W34 |
| 4003208 |
TDM2540UPM |
TDM10000UP |
25,40 |
1.000 |
W34 |
| 4002444 |
TDM2550UPM |
TDM2550UPM |
25,50 |
1.004 |
W34 |
| 4003209 |
TDM2568UPM |
TDM10110UP |
25,68 |
1.011 |
W34 |
| 4003210 |
TDM2581UPM |
TDM10160UP |
25,81 |
1.016 |
W34 |
| 3992013 |
TDM2599UPM |
TDM2599UPM |
25,99 |
1.023 |
W34 |
| Tolerances |
| D1 metric |
Tolerance k8 |
D1 inch |
Tolerance k8 |
| 8 to 10 |
0,000/+0,022 |
.3125 to .3906 |
.000/+.0009 |
| >10 to 17 |
0,000/+0,027 |
>.3906 to .6250 |
.000/+.0011 |
| >17 to 18 |
0,000/+0,027 |
>.6692 to .7090 |
.000/+.0010 |
| >18 to 21 |
0,000/+0,033 |
>.7090 to .8228 |
.000/+.0013 |
|
|
