Precision Hole Finishing - ROTAFLEX™ RFX Adapters

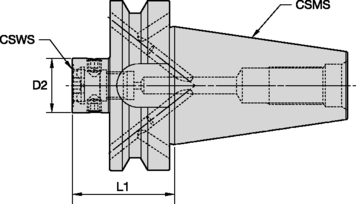

RFX • BT50 Taper Shank Form B/AD
|
|
|
|
 |
|
|
> |
D2
| L1
|
|
| order number |
catalog number
|
CSMS
system size |
CSWS
system size |
mm |
in |
mm |
in |
kg |
lbs. |
lock screw |
wrench |
Nm |
ft.lbs |
| 3860681 |
BT50BRFX320060M |
BT50 |
RFX320 |
32,0 |
1.260 |
60,0 |
2.362 |
3,5 |
7.70 |
RFX320LS |
12148041200 |
14,0 |
10.33 |
| 3860682 |
BT50BRFX420060M |
BT50 |
RFX420 |
42,0 |
1.654 |
60,0 |
2.362 |
3,9 |
8.60 |
RFX420LS |
12148041300 |
16,0 |
11.80 |
| 3860693 |
BT50BRFX550065M |
BT50 |
RFX550 |
55,0 |
2.165 |
60,0 |
2.362 |
4,2 |
9.20 |
RFX550LS |
12148041400 |
20,0 |
14.75 |
| 3860694 |
BT50BRFX720070M |
BT50 |
RFX720 |
72,0 |
2.835 |
70,0 |
2.756 |
4,5 |
9.90 |
RFX720LS |
12148041400 |
20,0 |
14.75 |
|
|
