Precision Hole Finishing - ROTAFLEX™ RFX Adapters

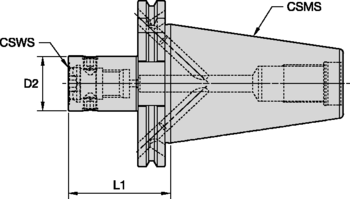

RFX • DV40 Taper Shank Form B/AD
|
|
|
|
 |
|
|
> |
D2
| L1
|
|
| order number |
catalog number
|
CSMS
system size |
CSWS
system size |
mm |
in |
mm |
in |
kg |
lbs. |
lock screw |
wrench |
Nm |
ft.lbs |
| 3860696 |
DV40BRFX185060M |
DV40 |
RFX185 |
18,5 |
.728 |
60,0 |
2.362 |
1,1 |
2.40 |
RFX185LS |
12148041100 |
6,0 |
4.43 |
| 3860697 |
DV40BRFX245060M |
DV40 |
RFX245 |
24,5 |
.965 |
60,0 |
2.362 |
1,1 |
2.40 |
RFX245LS |
12148041100 |
8,0 |
5.90 |
| 3860698 |
DV40BRFX320060M |
DV40 |
RFX320 |
32,0 |
1.260 |
60,0 |
2.362 |
1,1 |
2.40 |
RFX320LS |
12148041200 |
14,0 |
10.33 |
| 3860699 |
DV40BRFX420060M |
DV40 |
RFX420 |
42,0 |
1.654 |
60,0 |
2.362 |
1,1 |
2.40 |
RFX420LS |
12148041300 |
16,0 |
11.80 |
| 3860700 |
DV40BRFX550065M |
DV40 |
RFX550 |
55,0 |
2.165 |
65,0 |
2.559 |
1,2 |
2.60 |
RFX550LS |
12148041400 |
20,0 |
14.75 |
|
|
