Precision Hole Finishing - ROTAFLEX™ RFX Adapters

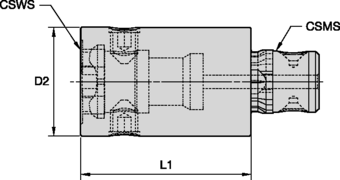

RFX Extensions
|
|
|
|
 |
|
|
> |
D2
| L1
|
|
| order number |
catalog number
|
CSMS
system size |
CSWS
system size |
mm |
in |
mm |
in |
kg |
lbs. |
lock screw |
wrench |
Nm |
ft.lbs |
| 3860450 |
RFX185RFX185030M |
RFX185 |
RFX185 |
18,5 |
.728 |
30,0 |
1.181 |
0,1 |
.20 |
RFX185LS |
12148041100 |
6,0 |
4.43 |
| 3860451 |
RFX245RFX245035M |
RFX245 |
RFX245 |
24,5 |
.965 |
35,0 |
1.378 |
0,2 |
.40 |
RFX245LS |
12148041100 |
8,0 |
5.90 |
| 3860452 |
RFX320RFX320050M |
RFX320 |
RFX320 |
32,0 |
1.260 |
50,0 |
1.969 |
0,3 |
.70 |
RFX320LS |
12148041200 |
14,0 |
10.33 |
| 3860473 |
RFX420RFX420060M |
RFX420 |
RFX420 |
42,0 |
1.654 |
60,0 |
2.362 |
0,8 |
1.80 |
RFX420LS |
12148041300 |
16,0 |
11.80 |
| 3860474 |
RFX550RFX550090M |
RFX550 |
RFX550 |
55,0 |
2.165 |
90,0 |
3.543 |
1,6 |
3.50 |
RFX550LS |
12148041400 |
20,0 |
14.75 |
| 3860475 |
RFX720RFX720100M |
RFX720 |
RFX720 |
72,0 |
2.835 |
100,0 |
3.937 |
3,1 |
6.80 |
RFX720LS |
12148041400 |
25,0 |
18.44 |
|
|
