Precision Hole Finishing - ROTAFLEX™ RFX Adapters
RFX Reducers

35363.jpg 35356.gif


    CLICK TOOL NUMBERS TO ORDER
>

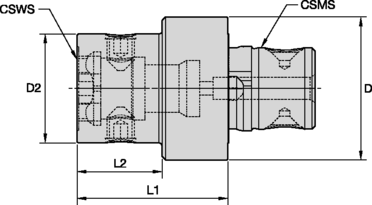

D D2 L1 L2
order number catalog number CSMS
system size 		CSWS
system size 		mm in mm in mm in mm in kg lbs. lock screw wrench Nm ft.lbs
3860419 RFX320RFX185030M RFX320 RFX185 32,0 1.260 18,5   .728 30,0 1.181 15,0   .591 0,2   .40 RFX185LS 12148041100   6,0   4.43
3860420 RFX320RFX245040M RFX320 RFX245 32,0 1.260 24,5   .965 40,0 1.575 25,0   .984 0,2   .40 RFX245LS 12148041100   8,0   5.90
3860421 RFX420RFX185035M RFX420 RFX185 42,0 1.654 18,5   .728 35,0 1.378 15,0   .591 0,4   .90 RFX185LS 12148041100   6,0   4.43
3860422 RFX420RFX245045M RFX420 RFX245 42,0 1.654 24,5   .965 45,0 1.772 25,0   .984 0,4   .90 RFX245LS 12148041100   8,0   5.90
3860443 RFX420RFX320045M RFX420 RFX320 42,0 1.654 32,0 1.260 45,0 1.772 25,0   .984 0,6 1.30 RFX320LS 12148041200 14,0 10.33
3860444 RFX550RFX185040M RFX550 RFX185 55,0 2.165 18,5   .728 40,0 1.575 15,0   .591 0,7 1.50 RFX185LS 12148041100   6,0   4.43
3860445 RFX550RFX245050M RFX550 RFX245 55,0 2.165 24,5   .965 50,0 1.969 25,0   .984 0,8 1.80 RFX245LS 12148041100   8,0   5.90
3860446 RFX550RFX320050M RFX550 RFX320 55,0 2.165 32,0 1.260 50,0 1.969 25,0   .984 0,8 1.80 RFX320LS 12148041200 14,0 10.33
3860447 RFX550RFX420055M RFX550 RFX420 55,0 2.165 42,0 1.654 55,0 2.165 30,0 1.181 0,9 2.00 RFX420LS 12148041300 16,0 11.80
3860448 RFX720RFX420060M RFX720 RFX420 72,0 2.835 42,0 1.654 60,0 2.362 30,0 1.181 1,6 3.50 RFX420LS 12148041300 16,0 11.80
3860449 RFX720RFX550060M RFX720 RFX550 72,0 2.835 55,0 2.165 60,0 2.362 30,0 1.181 1,8 4.00 RFX550LS 12148041400 20,0 14.75

NOTE: Lock screws included.
