Precision Hole Finishing - ROTAFLEX™

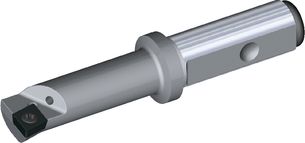

Boring Bars for Precision Fine Boring Heads (FBHBB)
|
|
|
|
 |
|
- All boring bars have internal coolant supply directed to the cutting edge.
|
> |

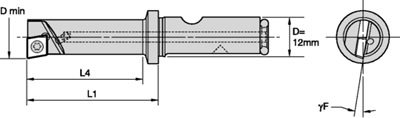

F |
L1 |
F |
L1 |
|
| order number |
catalog number |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
γF° |
kg |
lbs. |
| 2005954 |
12627006200 |
6,00 |
.236 |
8,00 |
.315 |
30,00 |
1.181 |
24,00 |
.945 |
-5.00 |
0,1 |
.22 |
| 2006015 |
12627008200 |
8,00 |
.315 |
10,00 |
.394 |
30,00 |
1.181 |
25,00 |
.984 |
-3.00 |
0,1 |
.22 |
| 2005499 |
12627010200 |
10,00 |
.394 |
13,00 |
.512 |
35,00 |
1.378 |
30,00 |
1.181 |
-11.00 |
0,1 |
.22 |
| 2005542 |
12627013200 |
13,00 |
.512 |
16,00 |
.630 |
40,00 |
1.575 |
35,00 |
1.378 |
-9.00 |
0,1 |
.22 |
| 2005558 |
12627016200 |
16,00 |
.630 |
19,00 |
.748 |
45,00 |
1.772 |
40,00 |
1.575 |
-6.00 |
0,2 |
.44 |
| 2005573 |
12627019300 |
19,00 |
.748 |
22,00 |
.866 |
55,00 |
2.165 |
50,00 |
1.969 |
-6.00 |
0,2 |
.44 |
Spare Parts
| catalog number |
gage
insert |
clamping
screw |
Torx
wrench |
Torx
wrench |
Nm |
ft.lbs |
| 12627006200 |
CP..04T1.. |
12148005800 |
12148005900 |
|
0,3 |
.22 |
| 12627008200 |
CP..04T1.. |
12148005800 |
12148005900 |
|
0,3 |
.22 |
| 12627010200 |
CC../CP..0602.. |
12148068700 |
12148086600 |
12148086600 |
1,0 |
.74 |
| 12627013200 |
CC../CP..0602.. |
12148068700 |
12148086600 |
12148086600 |
1,0 |
.74 |
| 12627016200 |
CC../CP..0602.. |
12148068700 |
12148086600 |
12148086600 |
1,0 |
.74 |
| 12627019300 |
CC../CP..0602.. |
12148068700 |
12148086600 |
12148086600 |
1,0 |
.74 |
|
|
