Precision Hole Finishing - ROTAFLEX™

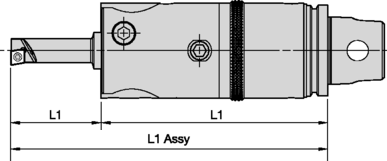

Precision Fine Boring Heads with Boring Bar FBHBB • RFX Series Shank
|
|
|
|
 |
|
- .0004" (0,01mm) diameter adjustment.
- Basic body shipped without boring bars.
|
|
BR1 bore range |
L1 |
D |
| order number |
catalog number |
mm |
in |
mm |
in |
mm |
in |
CSMS system size |
kg |
lbs. |
| 3860906 |
RFX420FBHBB006022 |
6,000-22,000 |
.2362-0.8661 |
95,00 |
3.740 |
42,00 |
1.654 |
RFX420 |
1,1 |
2.40 |
Spare Parts
| catalog number |
front clamping
screw 1 |
clamping
screw 2 |
adjustment
locking screw |
screw
driver |
| RFX420FBHBB006022 |
12147617400 |
12148042400 |
12147680500 |
12148041300 |
|
|
