Precision Fine Boring Heads (FBH) with Insert Holders FBH • KM™ Series Shank
|
|
|
|
 |
|
- .0004" (0,01mm) diameter adjustment.
- Basic body shipped without boring bars.
|
|

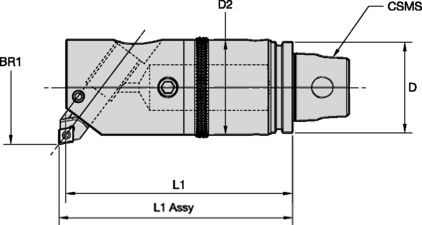

BR1 bore range |
L1 |
D | L1 Assy |
| order number |
catalog number |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
CSMS system size |
kg |
lbs. |
| 3861123 |
KM32TSFBH022029 |
22,000-29,000 |
.8661-1.1417 |
18,50 |
.728 |
60,00 |
2.362 |
62,00 |
2.440 |
KM32TS |
0,2 |
.40 |
| 3861124 |
KM32TSFBH029038 |
29,000-38,000 |
1.1417-1.4961 |
24,50 |
.965 |
70,00 |
2.756 |
72,00 |
2.830 |
KM32TS |
0,2 |
.40 |
| 3861125 |
KM32TSFBH038050 |
38,000-50,000 |
1.4961-1.9385 |
32,00 |
1.260 |
80,00 |
3.150 |
82,00 |
3.230 |
KM32TS |
0,5 |
1.10 |
| 3861126 |
KM40TSFBH029038 |
29,000-38,000 |
1.1417-1.4961 |
24,50 |
.965 |
90,00 |
3.543 |
92,00 |
3.620 |
KM40TS |
0,5 |
1.10 |
| 3861127 |
KM40TSFBH038050 |
38,000-50,000 |
1.4961-1.9385 |
32,00 |
1.260 |
100,00 |
3.937 |
103,00 |
4.060 |
KM40TS |
0,9 |
2.00 |
| 3861128 |
KM40TSFBH050065 |
50,000-65,000 |
1.9685-2.5591 |
42,00 |
1.654 |
105,00 |
4.134 |
108,00 |
4.252 |
KM40TS |
1,1 |
2.40 |
| 3861129 |
KM50TSFBH050065 |
50,000-65,000 |
1.9685-2.5591 |
42,00 |
1.654 |
110,00 |
4.331 |
115,00 |
4.530 |
KM50TS |
1,2 |
2.60 |
| 3861130 |
KM50TSFBH065088 |
65,000-88,000 |
2.5591-3.4646 |
55,00 |
2.165 |
125,00 |
4.920 |
130,00 |
5.118 |
KM50TS |
1,7 |
3.70 |
| 3861131 |
KM63TSFBH065088 |
65,000-88,000 |
2.5591-3.4646 |
55,00 |
2.165 |
130,00 |
5.118 |
135,00 |
5.310 |
KM63TS |
2,0 |
4.40 |
| 3861132 |
KM63TSFBH088115 |
88,000-115,000 |
3.4646-4.5276 |
63,00 |
2.480 |
130,00 |
5.118 |
135,00 |
5.310 |
KM63TS |
2,5 |
5.50 |
Spare Parts
| catalog number |
coarse
adjusting screw |
adjustment
locking screw |
holder
fixing screw |
wedge |
| KM32TSFBH022029 |
12147620000 |
12147680200 |
12147622100 |
12147621100 |
| KM32TSFBH029038 |
12147620000 |
12147680300 |
12148577000 |
12147621200 |
| KM32TSFBH038050 |
12147620300 |
12147680400 |
12147622300 |
12147621300 |
| KM40TSFBH029038 |
12147620000 |
12147680300 |
12148577000 |
12147621200 |
| KM40TSFBH038050 |
12147620300 |
12147680400 |
12147622300 |
12147621300 |
| KM40TSFBH050065 |
12147620400 |
12147680500 |
12148575900 |
12147621400 |
| KM50TSFBH050065 |
12147620400 |
12147680500 |
12148575900 |
12147621400 |
| KM50TSFBH065088 |
12147620500 |
12147680600 |
12148087100 |
12147621500 |
| KM63TSFBH065088 |
12147620500 |
12147680600 |
12148087100 |
12147621500 |
| KM63TSFBH088115 |
12147620600 |
12147680700 |
12148087100 |
12147621600 |
| catalog number |
screw
driver |
screw
driver |
screw
driver |
screw
driver |
screw
driver |
screw
driver |
screw
driver |
| KM32TSFBH022029 |
12148041100 |
— |
— |
— |
— |
12148040900 |
— |
| KM32TSFBH029038 |
12148041100 |
— |
— |
— |
— |
12148040900 |
— |
| KM32TSFBH038050 |
— |
12148041200 |
— |
— |
— |
— |
12148041000 |
| KM40TSFBH029038 |
12148041100 |
— |
— |
— |
— |
12148040900 |
— |
| KM40TSFBH038050 |
— |
12148041200 |
— |
— |
— |
— |
12148041000 |
| KM40TSFBH050065 |
12148041100 |
— |
12148041300 |
— |
— |
— |
— |
| KM50TSFBH050065 |
12148041100 |
— |
12148041300 |
— |
— |
— |
— |
| KM50TSFBH065088 |
— |
12148041200 |
— |
12148041400 |
— |
— |
— |
| KM63TSFBH065088 |
— |
12148041200 |
— |
12148041400 |
— |
— |
— |
| KM63TSFBH088115 |
— |
12148041200 |
— |
— |
12148079000 |
— |
— |
|
|
