Precision Hole Finishing - ROTAFLEX™
Precision Fine Boring Heads (FBH) with Insert Holders FBH • RFX Series Shank
|
|
|
|
 |
|
- .0004" (0,01mm) diameter adjustment.
- Basic body shipped without boring bars.
|
|

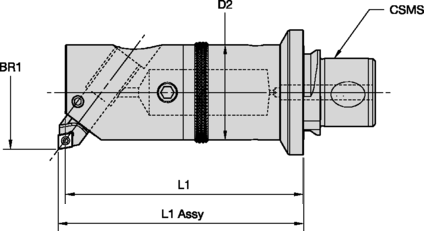

BR1 bore range |
L1 |
D | L1 Assy |
| order number |
catalog number |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
CSMS system size |
kg |
lbs. |
| 3861143 |
RFX185FBH022029 |
22,000-29,000 |
.8661-1.1417 |
18,50 |
.728 |
55,00 |
2.165 |
56,00 |
2.200 |
RFX185 |
0,2 |
.40 |
| 3861144 |
RFX245FBH029038 |
29,000-38,000 |
1.1417-1.4961 |
24,50 |
.965 |
60,00 |
2.362 |
62,00 |
2.440 |
RFX245 |
0,2 |
.40 |
| 3861145 |
RFX320FBH038050 |
38,000-50,000 |
1.4961-1.9385 |
32,00 |
1.260 |
75,00 |
2.953 |
77,00 |
3.030 |
RFX320 |
0,5 |
1.10 |
| 3861146 |
RFX420FBH050065 |
50,000-65,000 |
1.9685-2.5591 |
42,00 |
1.654 |
95,00 |
3.740 |
98,00 |
3.860 |
RFX420 |
1,1 |
2.40 |
| 3861147 |
RFX550FBH065088 |
65,000-88,000 |
2.5591-3.4646 |
55,00 |
2.165 |
115,00 |
4.528 |
120,00 |
4.720 |
RFX550 |
2,1 |
4.60 |
| 3861148 |
RFX720FBH088115 |
88,000-115,000 |
3.4646-4.5276 |
72,00 |
2.835 |
155,00 |
6.102 |
160,00 |
6.300 |
RFX720 |
4,9 |
10.80 |

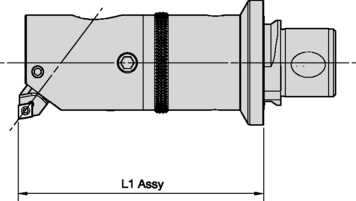

Spare Parts
| catalog number |
coarse
adjusting screw |
adjustment
locking screw |
holder
fixing screw |
wedge |
| RFX185FBH022029 |
12147620000 |
12147680200 |
12147622100 |
12147621100 |
| RFX245FBH029038 |
12147620000 |
12147680300 |
12148577000 |
12147621200 |
| RFX320FBH038050 |
12147620300 |
12147680400 |
12147622300 |
12147621300 |
| RFX420FBH050065 |
12147620400 |
12147680500 |
12148575900 |
12147621400 |
| RFX550FBH065088 |
12147620500 |
12147680600 |
12148087100 |
12147621500 |
| RFX720FBH088115 |
12147620600 |
12147680700 |
12148087100 |
12147621600 |
| catalog number |
screw
driver |
screw
driver |
screw
driver |
screw
driver |
screw
driver |
screw
driver |
screw
driver |
| RFX185FBH022029 |
12148041100 |
— |
— |
— |
— |
12148040900 |
— |
| RFX245FBH029038 |
12148041100 |
— |
— |
— |
— |
12148040900 |
— |
| RFX320FBH038050 |
— |
12148041200 |
— |
— |
— |
— |
12148041000 |
| RFX420FBH050065 |
12148041100 |
— |
12148041300 |
— |
— |
— |
— |
| RFX550FBH065088 |
— |
12148041200 |
— |
12148041400 |
— |
— |
— |
| RFX720FBH088115 |
— |
12148041200 |
— |
— |
12148079000 |
— |
|
|
|
