Precision Hole Finishing - ROTAFLEX™
Fine Boring Heads (FBH) Precision Head Insert Holder • C and T-Styles
|
|
|
|

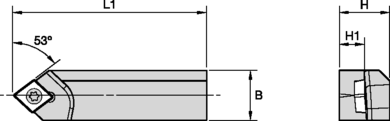

C Style

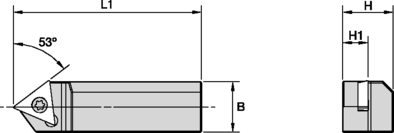

T Style
|
|
- .0004" (0,01mm) diameter adjustment.
- Basic body shipped without boring bars.
|
| C Style |
D Min |
D Max |
| order number |
catalog number |
mm |
in |
mm |
in |
L1 |
H |
H1 |
B |
gage
insert |
clamping
screw |
Torx
driver |
Nm |
ft.lbs |
| 2004781 |
12627270300 |
22,00 |
.866 |
29,00 |
1.142 |
19,0 |
8,0 |
4,5 |
8,0 |
CC../CP..0602.. |
12148068700 |
12148086600 |
1,0 |
.74 |
| 2004782 |
12627275300 |
29,00 |
1.142 |
38,00 |
1.496 |
27,0 |
8,0 |
4,5 |
8,0 |
CC../CP..0602.. |
12148068700 |
12148086600 |
1,0 |
.74 |
| 2004133 |
12627270700 |
38,00 |
1.496 |
50,00 |
1.969 |
35,0 |
10,0 |
5,5 |
10,0 |
CC../CP..0602.. |
12148068700 |
12148086600 |
1,0 |
.74 |
| 2004140 |
12627276500 |
50,00 |
1.969 |
65,00 |
2.559 |
46,0 |
12,0 |
6,5 |
12,0 |
CC../CP..0602.. |
12148068700 |
12148086600 |
1,0 |
.74 |
| 2004161 |
12627277700 |
65,00 |
2.559 |
88,00 |
3.465 |
60,0 |
16,0 |
8,0 |
16,0 |
CC../CP..09T3.. |
12148038800 |
12148082400 |
3,0 |
2.21 |
| 2004177 |
12627278700 |
88,00 |
3.465 |
115,00 |
4.528 |
84,0 |
16,0 |
8,0 |
16,0 |
CC../CP..09T3.. |
12148038800 |
12148082400 |
3,0 |
2.21 |
|
| T Style |
D Min |
D Max |
| order number |
catalog number |
mm |
in |
mm |
in |
L1 |
H |
H1 |
B |
gage
insert |
clamping
screw |
Torx
driver |
Nm |
ft.lbs |
| 2004134 |
12627270800 |
38,00 |
1.496 |
50,00 |
1.969 |
35,0 |
10,0 |
5,5 |
10,0 |
TC../TP..1102.. |
12148068700 |
12148086600 |
1,0 |
.74 |
| 2004141 |
12627276800 |
50,00 |
1.969 |
65,00 |
2.559 |
46,0 |
12,0 |
6,5 |
12,0 |
TC../TP..1102.. |
12148068700 |
12148086600 |
1,0 |
.74 |
| 2004162 |
12627277800 |
65,00 |
2.559 |
88,00 |
3.465 |
60,0 |
16,0 |
8,0 |
16,0 |
TC../TP..1102.. |
12148038800 |
12148082400 |
3,0 |
2.21 |
| 2004178 |
12627278800 |
86,00 |
3.386 |
115,00 |
4.528 |
84,0 |
16,0 |
8,0 |
16,0 |
TC../TP..1102.. |
12148038800 |
12148082400 |
3,0 |
2.21 |
|
|
