Precision Hole Finishing - ROTAFLEX™
Rough Boring Twin Cutter TCHS • KM-TS™ Shanks
|
|
|
|
 |
|
|
|
- Basic body shipped without insert holders.
- Order insert holder separately.
|
|

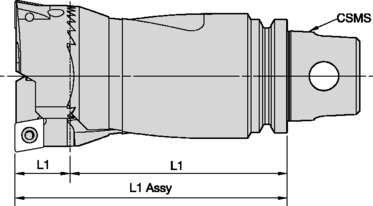

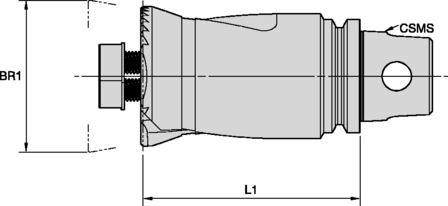

BR1 bore range |
D |
L1 |
| order number |
catalog number |
mm |
in |
mm |
in |
mm |
in |
kg |
fixing
screw |
disc
washer |
screw
driver |
| 3861149 |
KM32TSTCHS022030 |
22,000-30,000 |
.8661-1.1811 |
52,7 |
2.073 |
KM32TS |
0,30 |
.7 |
12147602700 |
12147600100 |
12148099300 |
| 3861150 |
KM32TSTCHS030039 |
30,000-39,000 |
1.1811-1.5354 |
67,7 |
2.663 |
KM32TS |
0,50 |
1.1 |
12147602300 |
12147603900 |
12147615000 |
| 3861151 |
KM32TSTCHS039050 |
39,000-50,000 |
1.5354-1.9685 |
63,7 |
2.508 |
KM32TS |
0,70 |
1.5 |
12147602400 |
12147600200 |
12147615200 |
| 3861152 |
KM40TSTCHS030039 |
30,000-39,000 |
1.1811-1.5354 |
87,7 |
3.451 |
KM40TS |
0,60 |
1.3 |
12147602300 |
12147603900 |
12147615000 |
| 3861173 |
KM40TSTCHS039050 |
39,000-50,000 |
1.5354-1.9685 |
83,7 |
3.295 |
KM40TS |
1,00 |
2.2 |
12147602400 |
12147600200 |
12147615200 |
| 3861174 |
KM40TSTCHS050067 |
50,000-67,000 |
1.9685-2.6378 |
78,2 |
3.079 |
KM40TS |
1,10 |
2.4 |
12147602500 |
12147604000 |
12147615300 |
| 3861175 |
KM50TSTCHS050067 |
50,000-67,000 |
1.9685-2.6378 |
88,2 |
3.472 |
KM50TS |
1,20 |
2.6 |
12147602500 |
12147604000 |
12147615300 |
| 3861176 |
KM50TSTCHS067088 |
67,000-88,000 |
2.6378-3.4646 |
95,7 |
3.768 |
KM50TS |
1,40 |
3.1 |
12147602600 |
12147600300 |
12147615400 |
| 3861177 |
KM63TSTCHS067088 |
67,000-88,000 |
2.6378-3.4646 |
95,7 |
3.768 |
KM63TS |
1,80 |
4.0 |
12147602600 |
12147600300 |
12147615400 |
| 3861178 |
KM63TSTCHS088115 |
88,000-115,000 |
3.4646-4.5276 |
93,7 |
3.689 |
KM63TS |
2,40 |
5.3 |
12147602800 |
12147600400 |
12147615500 |
|
|
