Precision Hole Finishing - ROTAFLEX™

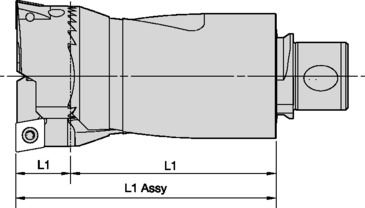

Rough Boring Twin Cutter TCHS • RFX Shank Series
|
|
|
|
 |
|
- Basic body shipped without insert holders.
- Order insert holder separately.
|
|
BR1 bore range |
L1 |
| order number |
catalog number |
mm |
in |
mm |
in |
CSMS system size |
kg |
lbs. |
fixing
screw |
disc
washer |
screw
driver |
| 3861179 |
RFX185TCHS022030 |
22,500-30,000 |
.8858-1.1811 |
27,7 |
1.089 |
RFX185 |
0,20 |
.4 |
12147602700 |
12147600100 |
12148099300 |
| 3861180 |
RFX245TCHS030039 |
30,000-39,000 |
1.1811-1.5354 |
37,7 |
1.482 |
RFX245 |
0,20 |
.4 |
12147602300 |
12147603900 |
12147615000 |
| 3861181 |
RFX320TCHS039050 |
39,000-50,000 |
1.5354-1.9685 |
48,7 |
1.917 |
RFX320 |
0,50 |
1.1 |
12147602400 |
12147600200 |
12147615200 |
| 3861182 |
RFX420TCHS050067 |
50,000-67,000 |
1.9685-2.6378 |
68,2 |
2.685 |
RFX420 |
1,00 |
2.2 |
12147602500 |
12147604000 |
12147615300 |
| 3861183 |
RFX550TCHS067088 |
67,000-88,000 |
2.6378-3.4646 |
90,7 |
3.571 |
RFX550 |
2,00 |
4.4 |
12147602600 |
12147600300 |
12147615400 |
| 3861184 |
RFX720TCHS088115 |
88,000-115,000 |
3.4646-4.5276 |
113,7 |
4.476 |
RFX720 |
4,00 |
8.8 |
12147602800 |
12147600400 |
12147615500 |
|
|
