High-Performance Solid Carbide Drills
Steel and Cast Iron • TOP DRILL S+™ • 3 x D - Series 170500

P ●
M
K ●
N ○
S ○
H
K20FTIALN

● first choice
○ alternate choice


    CLICK TOOL NUMBERS TO ORDER
inch fraction wire letter mm mm

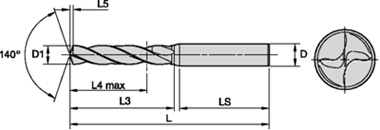

order number catalog number D1 D1 D1 size D1 D L3 L4 max L5 LS L
2964222 17050003000 .1181 - -   3,000   6   .79   .55 .019 1.42 2.44
2964233 17050003100 .1220 - -   3,100   6   .79   .55 .020 1.42 2.44
2964234 17050003200 .1260 - -   3,200   6   .79   .55 .020 1.42 2.44
2964235 17050003250 .1280 - -   3,250   6   .79   .55 .021 1.42 2.44
2964236 17050003300 .1299 - -   3,300   6   .79   .55 .021 1.42 2.44
2964237 17050003400 .1339 - -   3,400   6   .79   .55 .022 1.42 2.44
2964238 17050003500 .1378 - -   3,500   6   .79   .55 .022 1.42 2.44
2964239 17050003600 .1417 - -   3,600   6   .79   .55 .023 1.42 2.44
2964240 17050003700 .1457 - -   3,700   6   .79   .55 .024 1.42 2.44
2964241 17050003800 .1496 - -   3,800   6   .94   .67 .025 1.42 2.60
2964242 17050003900 .1535 - -   3,900   6   .94   .67 .025 1.42 2.60
2964243 17050004000 .1575 - -   4,000   6   .94   .67 .026 1.42 2.60
2964244 17050004100 .1614 - -   4,100   6   .94   .67 .027 1.42 2.60
2964245 17050004200 .1654 - -   4,200   6   .94   .67 .027 1.42 2.60
2964246 17050004300 .1693 - -   4,300   6   .94   .67 .028 1.42 2.60
2964247 17050004370 .1720 - -   4,370   6   .94   .67 .028 1.42 2.60
2964248 17050004400 .1732 - -   4,400   6   .94   .67 .029 1.42 2.60
2964249 17050004500 .1772 - -   4,500   6   .94   .67 .029 1.42 2.60
2964250 17050004600 .1811 - -   4,600   6   .94   .67 .030 1.42 2.60
2964251 17050004650 .1831 - -   4,650   6   .94   .67 .030 1.42 2.60
2964252 17050004700 .1850 - 13   4,700   6   .94   .67 .031 1.42 2.60
2964273 17050004760 .1874 - -   4,760   6 1.10   .79 .031 1.42 2.60
2964274 17050004800 .1890 - 12   4,800   6 1.10   .79 .031 1.42 2.60
2964275 17050004900 .1929 - -   4,900   6 1.10   .79 .032 1.42 2.60
2964276 17050005000 .1969 - -   5,000   6 1.10   .79 .033 1.42 2.60
2964277 17050005100 .2008 - -   5,100   6 1.10   .79 .033 1.42 2.60
2964278 17050005160 .2031 13/64 -   5,160   6 1.10   .79 .034 1.42 2.60
2964279 17050005200 .2047 - -   5,200   6 1.10   .79 .034 1.42 2.60
2964280 17050005300 .2087 - -   5,300   6 1.10   .79 .035 1.42 2.60
2964281 17050005400 .2126 - -   5,400   6 1.10   .79 .035 1.42 2.60
2964282 17050005500 .2165 - -   5,500   6 1.10   .79 .036 1.42 2.60
2964293 17050005550 .2185 - -   5,550   6 1.10   .79 .037 1.42 2.60
2964294 17050005560 .2189 - -   5,560   6 1.10   .79 .037 1.42 2.60
2964295 17050005600 .2205 - -   5,600   6 1.10   .79 .037 1.42 2.60
2964296 17050005700 .2244 - -   5,700   6 1.10   .79 .038 1.42 2.60
2964297 17050005800 .2283 - -   5,800   6 1.10   .79 .038 1.42 2.60
2964298 17050005900 .2323 - -   5,900   6 1.10   .79 .039 1.42 2.60
2964299 17050005950 .2343 - -   5,950   6 1.10   .79 .039 1.42 2.60
2964300 17050006000 .2362 - -   6,000   6 1.10   .79 .040 1.42 2.60
2964301 17050006100 .2402 - -   6,100   8 1.34   .94 .040 1.42 3.11
2964302 17050006200 .2441 - -   6,200   8 1.34   .94 .041 1.42 3.11
2964313 17050006300 .2480 - -   6,300   8 1.34   .94 .042 1.42 3.11
2964314 17050006350 .2500 1/4 E   6,350   8 1.34   .94 .042 1.42 3.11
2964315 17050006400 .2520 - -   6,400   8 1.34   .94 .042 1.42 3.11
2964316 17050006500 .2559 - -   6,500   8 1.34   .94 .043 1.42 3.11
2964317 17050006600 .2598 - -   6,600   8 1.34   .94 .044 1.42 3.11
2964318 17050006700 .2638 - -   6,700   8 1.34   .94 .044 1.42 3.11
2964319 17050006750 .2657 - -   6,750   8 1.34   .94 .045 1.42 3.11
2964320 17050006800 .2677 - -   6,800   8 1.34   .94 .045 1.42 3.11
2964321 17050006900 .2717 - -   6,900   8 1.34   .94 .046 1.42 3.11
2964322 17050007000 .2756 - -   7,000   8 1.34   .94 .046 1.42 3.11
2964333 17050007100 .2795 - -   7,100   8 1.61 1.14 .047 1.42 3.11
2964334 17050007140 .2811 - -   7,140   8 1.61 1.14 .047 1.42 3.11
2964335 17050007200 .2835 - -   7,200   8 1.61 1.14 .048 1.42 3.11
2964336 17050007300 .2874 - -   7,300   8 1.61 1.14 .049 1.42 3.11
2964337 17050007400 .2913 - -   7,400   8 1.61 1.14 .049 1.42 3.11
2964338 17050007500 .2953 - -   7,500   8 1.61 1.14 .050 1.42 3.11
2964339 17050007540 .2969 19/64 -   7,540   8 1.61 1.14 .050 1.42 3.11
2964340 17050007600 .2992 - -   7,600   8 1.61 1.14 .051 1.42 3.11
2964341 17050007700 .3031 - -   7,700   8 1.61 1.14 .051 1.42 3.11
2964342 17050007800 .3071 - -   7,800   8 1.61 1.14 .052 1.42 3.11
2964353 17050007900 .3110 - -   7,900   8 1.61 1.14 .053 1.42 3.11
2964354 17050007940 .3126 - -   7,940   8 1.61 1.14 .053 1.42 3.11
2964355 17050008000 .3150 - -   8,000   8 1.61 1.14 .053 1.42 3.11
2964356 17050008100 .3189 - -   8,100 10 1.85 1.38 .054 1.57 3.50
2964357 17050008200 .3228 - -   8,200 10 1.85 1.38 .055 1.57 3.50
2964358 17050008300 .3268 - -   8,300 10 1.85 1.38 .055 1.57 3.50
2964359 17050008330 .3280 - -   8,330 10 1.85 1.38 .056 1.57 3.50
2964360 17050008400 .3307 - -   8,400 10 1.85 1.38 .056 1.57 3.50
2964361 17050008500 .3346 - -   8,500 10 1.85 1.38 .057 1.57 3.50
2964362 17050008600 .3386 - -   8,600 10 1.85 1.38 .058 1.57 3.50
2964373 17050008700 .3425 - -   8,700 10 1.85 1.38 .058 1.57 3.50
2964374 17050008800 .3465 - -   8,800 10 1.85 1.38 .059 1.57 3.50
2964375 17050008900 .3504 - -   8,900 10 1.85 1.38 .060 1.57 3.50
2964376 17050009000 .3543 - -   9,000 10 1.85 1.38 .060 1.57 3.50
2964377 17050009100 .3583 - -   9,100 10 1.85 1.38 .061 1.57 3.50
2964378 17050009130 .3594 23/64 -   9,130 10 1.85 1.38 .061 1.57 3.50
2964379 17050009200 .3622 - -   9,200 10 1.85 1.38 .062 1.57 3.50
2964380 17050009300 .3661 - -   9,300 10 1.85 1.38 .062 1.57 3.50
2964381 17050009400 .3701 - -   9,400 10 1.85 1.38 .063 1.57 3.50
2964382 17050009500 .3740 - -   9,500 10 1.85 1.38 .064 1.57 3.50
2964393 17050009520 .3748 - -   9,520 10 1.85 1.38 .064 1.57 3.50
2964394 17050009600 .3780 - -   9,600 10 1.85 1.38 .064 1.57 3.50
2964395 17050009700 .3819 - -   9,700 10 1.85 1.38 .065 1.57 3.50
2964396 17050009800 .3858 - -   9,800 10 1.85 1.38 .066 1.57 3.50
2964397 17050009900 .3898 - -   9,900 10 1.85 1.38 .067 1.57 3.50
2964398 17050009920 .3906 25/64 -   9,920 10 1.85 1.38 .067 1.57 3.50
2964399 17050010000 .3937 - - 10,000 10 1.85 1.38 .067 1.57 3.50
2964400 17050010100 .3976 - - 10,100 12 2.17 1.57 .068 1.77 4.02
2964401 17050010200 .4016 - - 10,200 12 2.17 1.57 .069 1.77 4.02
2964402 17050010300 .4055 - - 10,300 12 2.17 1.57 .069 1.77 4.02
2964413 17050010320 .4063 13/32 - 10,320 12 2.17 1.57 .069 1.77 4.02
2964414 17050010400 .4094 - - 10,400 12 2.17 1.57 .070 1.77 4.02
2964415 17050010500 .4134 - - 10,500 12 2.17 1.57 .071 1.77 4.02
2964416 17050010600 .4173 - - 10,600 12 2.17 1.57 .071 1.77 4.02
2964417 17050010700 .4213 - - 10,700 12 2.17 1.57 .072 1.77 4.02
2964418 17050010720 .4220 - - 10,720 12 2.17 1.57 .072 1.77 4.02
2964419 17050010800 .4252 - - 10,800 12 2.17 1.57 .073 1.77 4.02
2964420 17050010900 .4291 - - 10,900 12 2.17 1.57 .074 1.77 4.02
2964421 17050011000 .4331 - - 11,000 12 2.17 1.57 .074 1.77 4.02
2964423 17050011100 .4370 - - 11,100 12 2.17 1.57 .075 1.77 4.02
2964424 17050011110 .4374 - - 11,110 12 2.17 1.57 .075 1.77 4.02
2964425 17050011200 .4409 - - 11,200 12 2.17 1.57 .076 1.77 4.02
2964426 17050011300 .4449 - - 11,300 12 2.17 1.57 .076 1.77 4.02
2964427 17050011400 .4488 - - 11,400 12 2.17 1.57 .077 1.77 4.02
2964428 17050011500 .4528 - - 11,500 12 2.17 1.57 .078 1.77 4.02
2964429 17050011600 .4567 - - 11,600 12 2.17 1.57 .078 1.77 4.02
2964430 17050011700 .4606 - - 11,700 12 2.17 1.57 .079 1.77 4.02
2964431 17050011800 .4646 - - 11,800 12 2.17 1.57 .080 1.77 4.02
2964432 17050011900 .4685 - - 11,900 12 2.17 1.57 .080 1.77 4.02
2964433 17050011910 .4689 - - 11,910 12 2.17 1.57 .081 1.77 4.02
2964434 17050012000 .4724 - - 12,000 12 2.17 1.57 .081 1.77 4.02
2964435 17050012300 .4843 - - 12,300 14 2.36 1.69 .083 1.77 4.21
2964436 17050012500 .4921 - - 12,500 14 2.36 1.69 .085 1.77 4.21
2964437 17050012700 .5000 1/2 - 12,700 14 2.36 1.69 .086 1.77 4.21
2964438 17050012800 .5039 - - 12,800 14 2.36 1.69 .087 1.77 4.21
2964439 17050013000 .5118 - - 13,000 14 2.36 1.69 .088 1.77 4.21
2964440 17050013500 .5315 - - 13,500 14 2.36 1.69 .092 1.77 4.21
2964441 17050013800 .5433 - - 13,800 14 2.36 1.69 .094 1.77 4.21
2964442 17050014000 .5512 - - 14,000 14 2.36 1.69 .095 1.77 4.21
2964443 17050014290 .5626 - - 14,290 16 2.56 1.77 .097 1.89 4.53
2964444 17050014500 .5709 - - 14,500 16 2.56 1.77 .099 1.89 4.53
2964445 17050014800 .5827 - - 14,800 16 2.56 1.77 .101 1.89 4.53
2964446 17050015000 .5906 - - 15,000 16 2.56 1.77 .102 1.89 4.53
2964447 17050015500 .6102 - - 15,500 16 2.56 1.77 .106 1.89 4.53
2964448 17050015800 .6220 - - 15,800 16 2.56 1.77 .108 1.89 4.53
2964449 17050015870 .6248 - - 15,870 16 2.56 1.77 .108 1.89 4.53
2964450 17050016000 .6299 - - 16,000 16 2.56 1.77 .109 1.89 4.53
2964451 17050016500 .6496 - - 16,500 18 2.87 2.01 .113 1.89 4.84
2964452 17050016670 .6563 21/32 - 16,670 18 2.87 2.01 .114 1.89 4.84
2964453 17050016800 .6614 - - 16,800 18 2.87 2.01 .115 1.89 4.84
2964454 17050017000 .6693 - - 17,000 18 2.87 2.01 .116 1.89 4.84
2964455 17050017500 .6890 - - 17,500 18 2.87 2.01 .120 1.89 4.84
2964456 17050017800 .7008 - - 17,800 18 2.87 2.01 .122 1.89 4.84
2964457 17050018000 .7087 - - 18,000 18 2.87 2.01 .123 1.89 4.84
2964458 17050018500 .7283 - - 18,500 20 3.11 2.17 .127 1.97 5.16
2964459 17050018800 .7402 - - 18,800 20 3.11 2.17 .129 1.97 5.16
2964460 17050019000 .7480 - - 19,000 20 3.11 2.17 .130 1.97 5.16
2964461 17050019050 .7500 3/4 - 19,050 20 3.11 2.17 .130 1.97 5.16
2964462 17050019500 .7677 - - 19,500 20 3.11 2.17 .134 1.97 5.16
2964463 17050019800 .7795 - - 19,800 20 3.11 2.17 .136 1.97 5.16
2964464 17050020000 .7874 - - 20,000 20 3.11 2.17 .137 1.97 5.16
Tolerances
METRIC INCH
D1 Tolerance m7 D Tolerance h6 D1 Tolerance m7 D Tolerance h6
>3 to 6 0,004/0,016 6 0,000/-0,008 > .1181 to .2362 .0002/.0006 .2362 .0000/-.0003
>6 to 10 0,006/0,021 8 to 10 0,000/-0,009 > .2362 to .3937 .0002/.0008 .315 to .3937 .0000/-.0004
>10 to 18 0,007/0,025 12 to 18 0,000/-0,011 > .3937 to .7087 .0003/.0010 .4724 to .7087 .0000/-.0004
>18 to 21 0,008/0,029 20 0,000/-0,013 > .7087 to .7874 .0003/.0011 .7874 .0000/-.0005

©2010-11 Jonathan Saada Inc.
