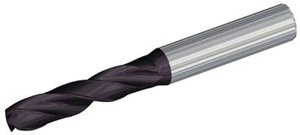

High-Performance Solid Carbide Drills with Through Coolant Holes
Steel and Cast Iron • TOP DRILL S+™ • 3 x D - Series 170501

P ●
M
K ●
N ○
S ○
H
K20FTIALN

● first choice
○ alternate choice


    CLICK TOOL NUMBERS TO ORDER
inch fraction wire letter mm mm

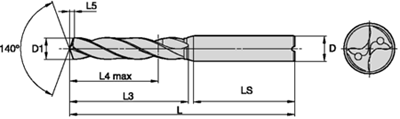

order number catalog number D1 D1 D1 size D1 D L3 L4 max L5 LS L
2964947 17050103000 .1181 - - 3,000 6 .79 .55 .019 1.42 2.44
2964948 17050103100 .1220 - - 3,100 6 .79 .55 .020 1.42 2.44
2964949 17050103200 .1260 - - 3,200 6 .79 .55 .020 1.42 2.44
2964950 17050103250 .1280 - - 3,250 6 .79 .55 .021 1.42 2.44
2964951 17050103300 .1299 - - 3,300 6 .79 .55 .021 1.42 2.44
2964952 17050103400 .1339 - - 3,400 6 .79 .55 .022 1.42 2.44
2964953 17050103500 .1378 - - 3,500 6 .79 .55 .022 1.42 2.44
2964954 17050103600 .1417 - - 3,600 6 .79 .55 .023 1.42 2.44
2964955 17050103700 .1457 - - 3,700 6 .79 .55 .024 1.42 2.44
2964956 17050103800 .1496 - - 3,800 6 .94 .67 .025 1.42 2.60
2964957 17050103900 .1535 - - 3,900 6 .94 .67 .025 1.42 2.60
2964958 17050104000 .1575 - - 4,000 6 .94 .67 .026 1.42 2.60
2964959 17050104100 .1614 - - 4,100 6 .94 .67 .027 1.42 2.60
2964960 17050104200 .1654 - - 4,200 6 .94 .67 .027 1.42 2.60
2964961 17050104300 .1693 - - 4,300 6 .94 .67 .028 1.42 2.60
2964962 17050104370 .1720 - - 4,370 6 .94 .67 .028 1.42 2.60
2964963 17050104400 .1732 - - 4,400 6 .94 .67 .029 1.42 2.60
2964964 17050104500 .1772 - - 4,500 6 .94 .67 .029 1.42 2.60
2964965 17050104600 .1811 - - 4,600 6 .94 .67 .030 1.42 2.60
2964966 17050104650 .1831 - - 4,650 6 .94 .67 .030 1.42 2.60
2964967 17050104700 .1850 - 13 4,700 6 .94 .67 .031 1.42 2.60
2964968 17050104760 .1874 - - 4,760 6 1.10 .79 .031 1.42 2.60
2964969 17050104800 .1890 - 12 4,800 6 1.10 .79 .031 1.42 2.60
2964970 17050104900 .1929 - - 4,900 6 1.10 .79 .032 1.42 2.60
2964971 17050105000 .1969 - - 5,000 6 1.10 .79 .033 1.42 2.60
2964972 17050105100 .2008 - - 5,100 6 1.10 .79 .033 1.42 2.60
2964973 17050105160 .2031 13/64 - 5,160 6 1.10 .79 .034 1.42 2.60
2964974 17050105200 .2047 - - 5,200 6 1.10 .79 .034 1.42 2.60
2964975 17050105300 .2087 - - 5,300 6 1.10 .79 .035 1.42 2.60
2964976 17050105400 .2126 - - 5,400 6 1.10 .79 .035 1.42 2.60
2964977 17050105500 .2165 - - 5,500 6 1.10 .79 .036 1.42 2.60
2964978 17050105550 .2185 - - 5,550 6 1.10 .79 .037 1.42 2.60
2964979 17050105560 .2189 - - 5,560 6 1.10 .79 .037 1.42 2.60
2964980 17050105600 .2205 - - 5,600 6 1.10 .79 .037 1.42 2.60
2964981 17050105700 .2244 - - 5,700 6 1.10 .79 .038 1.42 2.60
2964982 17050105800 .2283 - - 5,800 6 1.10 .79 .038 1.42 2.60
2964983 17050105900 .2323 - - 5,900 6 1.10 .79 .039 1.42 2.60
2964984 17050105950 .2343 - - 5,950 6 1.10 .79 .039 1.42 2.60
2964985 17050106000 .2362 - - 6,000 6 1.10 .79 .040 1.42 2.60
2964986 17050106100 .2402 - - 6,100 8 1.34 .94 .040 1.42 3.11
2964987 17050106200 .2441 - - 6,200 8 1.34 .94 .041 1.42 3.11
2964988 17050106300 .2480 - - 6,300 8 1.34 .94 .042 1.42 3.11
2964989 17050106350 .2500 1/4 E 6,350 8 1.34 .94 .042 1.42 3.11
2964990 17050106400 .2520 - - 6,400 8 1.34 .94 .042 1.42 3.11
2964991 17050106500 .2559 - - 6,500 8 1.34 .94 .043 1.42 3.11
2964992 17050106600 .2598 - - 6,600 8 1.34 .94 .044 1.42 3.11
2964993 17050106700 .2638 - - 6,700 8 1.34 .94 .044 1.42 3.11
2964994 17050106750 .2657 - - 6,750 8 1.34 .94 .045 1.42 3.11
2964995 17050106800 .2677 - - 6,800 8 1.34 .94 .045 1.42 3.11
2964996 17050106900 .2717 - - 6,900 8 1.34 .94 .046 1.42 3.11
2964997 17050107000 .2756 - - 7,000 8 1.34 .94 .046 1.42 3.11
2964998 17050107100 .2795 - - 7,100 8 1.61 1.14 .047 1.42 3.11
2964999 17050107140 .2811 - - 7,140 8 1.61 1.14 .047 1.42 3.11
2965000 17050107200 .2835 - - 7,200 8 1.61 1.14 .048 1.42 3.11
2965001 17050107300 .2874 - - 7,300 8 1.61 1.14 .049 1.42 3.11
2965002 17050107400 .2913 - - 7,400 8 1.61 1.14 .049 1.42 3.11
2965003 17050107500 .2953 - - 7,500 8 1.61 1.14 .050 1.42 3.11
2965004 17050107540 .2969 19/64 - 7,540 8 1.61 1.14 .050 1.42 3.11
2965005 17050107600 .2992 - - 7,600 8 1.61 1.14 .051 1.42 3.11
2965006 17050107700 .3031 - - 7,700 8 1.61 1.14 .051 1.42 3.11
2965007 17050107800 .3071 - - 7,800 8 1.61 1.14 .052 1.42 3.11
2965008 17050107900 .3110 - - 7,900 8 1.61 1.14 .053 1.42 3.11
2965009 17050107940 .3126 - - 7,940 8 1.61 1.14 .053 1.42 3.11
2965010 17050108000 .3150 - - 8,000 8 1.61 1.14 .053 1.42 3.11
2965011 17050108100 .3189 - - 8,100 10 1.85 1.38 .054 1.57 3.50
2965012 17050108200 .3228 - - 8,200 10 1.85 1.38 .055 1.57 3.50
2965013 17050108300 .3268 - - 8,300 10 1.85 1.38 .055 1.57 3.50
2965014 17050108330 .3280 - - 8,330 10 1.85 1.38 .056 1.57 3.50
2965015 17050108400 .3307 - - 8,400 10 1.85 1.38 .056 1.57 3.50
2965016 17050108500 .3346 - - 8,500 10 1.85 1.38 .057 1.57 3.50
2965017 17050108600 .3386 - - 8,600 10 1.85 1.38 .058 1.57 3.50
2965018 17050108700 .3425 - - 8,700 10 1.85 1.38 .058 1.57 3.50
2965019 17050108800 .3465 - - 8,800 10 1.85 1.38 .059 1.57 3.50
2965020 17050108900 .3504 - - 8,900 10 1.85 1.38 .060 1.57 3.50
2965021 17050109000 .3543 - - 9,000 10 1.85 1.38 .060 1.57 3.50
2965022 17050109100 .3583 - - 9,100 10 1.85 1.38 .061 1.57 3.50
2965023 17050109130 .3594 23/64 - 9,130 10 1.85 1.38 .061 1.57 3.50
2965024 17050109200 .3622 - - 9,200 10 1.85 1.38 .062 1.57 3.50
2965025 17050109300 .3661 - - 9,300 10 1.85 1.38 .062 1.57 3.50
2965026 17050109400 .3701 - - 9,400 10 1.85 1.38 .063 1.57 3.50
2965027 17050109500 .3740 - - 9,500 10 1.85 1.38 .064 1.57 3.50
2965028 17050109520 .3748 - - 9,520 10 1.85 1.38 .064 1.57 3.50
2965029 17050109600 .3780 - - 9,600 10 1.85 1.38 .064 1.57 3.50
2965030 17050109700 .3819 - - 9,700 10 1.85 1.38 .065 1.57 3.50
2965031 17050109800 .3858 - - 9,800 10 1.85 1.38 .066 1.57 3.50
2965032 17050109900 .3898 - - 9,900 10 1.85 1.38 .067 1.57 3.50
2965033 17050109920 .3906 25/64 - 9,920 10 1.85 1.38 .067 1.57 3.50
2965034 17050110000 .3937 - - 10,000 10 1.85 1.38 .067 1.57 3.50
2965035 17050110100 .3976 - - 10,100 12 2.17 1.57 .068 1.77 4.02
2965036 17050110200 .4016 - - 10,200 12 2.17 1.57 .069 1.77 4.02
2965037 17050110300 .4055 - - 10,300 12 2.17 1.57 .069 1.77 4.02
2965038 17050110320 .4063 13/32 - 10,320 12 2.17 1.57 .069 1.77 4.02
2965039 17050110400 .4094 - - 10,400 12 2.17 1.57 .070 1.77 4.02
2965040 17050110500 .4134 - - 10,500 12 2.17 1.57 .071 1.77 4.02
2965041 17050110600 .4173 - - 10,600 12 2.17 1.57 .071 1.77 4.02
2965042 17050110700 .4213 - - 10,700 12 2.17 1.57 .072 1.77 4.02
2965043 17050110720 .4220 - - 10,720 12 2.17 1.57 .072 1.77 4.02
2965044 17050110800 .4252 - - 10,800 12 2.17 1.57 .073 1.77 4.02
2965045 17050110900 .4291 - - 10,900 12 2.17 1.57 .074 1.77 4.02
2965046 17050111000 .4331 - - 11,000 12 2.17 1.57 .074 1.77 4.02
2965047 17050111100 .4370 - - 11,100 12 2.17 1.57 .075 1.77 4.02
2965048 17050111110 .4374 - - 11,110 12 2.17 1.57 .075 1.77 4.02
2964736 17050111200 .4409 - - 11,200 12 2.17 1.57 .076 1.77 4.02
2964737 17050111300 .4449 - - 11,300 12 2.17 1.57 .076 1.77 4.02
2964738 17050111400 .4488 - - 11,400 12 2.17 1.57 .077 1.77 4.02
2964739 17050111500 .4528 - - 11,500 12 2.17 1.57 .078 1.77 4.02
2964740 17050111600 .4567 - - 11,600 12 2.17 1.57 .078 1.77 4.02
2964741 17050111700 .4606 - - 11,700 12 2.17 1.57 .079 1.77 4.02
2964742 17050111800 .4646 - - 11,800 12 2.17 1.57 .080 1.77 4.02
2965053 17050111900 .4685 - - 11,900 12 2.17 1.57 .080 1.77 4.02
2965054 17050111910 .4689 - - 11,910 12 2.17 1.57 .081 1.77 4.02
2965055 17050112000 .4724 - - 12,000 12 2.17 1.57 .081 1.77 4.02
2965056 17050112300 .4843 - - 12,300 14 2.36 1.69 .083 1.77 4.21
2965057 17050112500 .4921 - - 12,500 14 2.36 1.69 .085 1.77 4.21
2965058 17050112700 .5000 1/2 - 12,700 14 2.36 1.69 .086 1.77 4.21
2965059 17050112800 .5039 - - 12,800 14 2.36 1.69 .087 1.77 4.21
2965060 17050113000 .5118 - - 13,000 14 2.36 1.69 .088 1.77 4.21
2965061 17050113500 .5315 - - 13,500 14 2.36 1.69 .092 1.77 4.21
2965062 17050113800 .5433 - - 13,800 14 2.36 1.69 .094 1.77 4.21
2965063 17050114000 .5512 - - 14,000 14 2.36 1.69 .095 1.77 4.21
2965064 17050114290 .5626 - - 14,290 16 2.56 1.77 .097 1.89 4.53
2965065 17050114500 .5709 - - 14,500 16 2.56 1.77 .099 1.89 4.53
2965066 17050114800 .5827 - - 14,800 16 2.56 1.77 .101 1.89 4.53
2965067 17050115000 .5906 - - 15,000 16 2.56 1.77 .102 1.89 4.53
2965068 17050115500 .6102 - - 15,500 16 2.56 1.77 .106 1.89 4.53
2965069 17050115800 .6220 - - 15,800 16 2.56 1.77 .108 1.89 4.53
2965070 17050115870 .6248 - - 15,870 16 2.56 1.77 .108 1.89 4.53
2965071 17050116000 .6299 - - 16,000 16 2.56 1.77 .109 1.89 4.53
2965072 17050116500 .6496 - - 16,500 18 2.87 2.01 .113 1.89 4.84
2965073 17050116670 .6563 21/32 - 16,670 18 2.87 2.01 .114 1.89 4.84
2965074 17050116800 .6614 - - 16,800 18 2.87 2.01 .115 1.89 4.84
2965075 17050117000 .6693 - - 17,000 18 2.87 2.01 .116 1.89 4.84
2965076 17050117500 .6890 - - 17,500 18 2.87 2.01 .120 1.89 4.84
2965077 17050117800 .7008 - - 17,800 18 2.87 2.01 .122 1.89 4.84
2965078 17050118000 .7087 - - 18,000 18 2.87 2.01 .123 1.89 4.84
2965079 17050118500 .7283 - - 18,500 20 3.11 2.17 .127 1.97 5.16
2965080 17050118800 .7402 - - 18,800 20 3.11 2.17 .129 1.97 5.16
2965081 17050119000 .7480 - - 19,000 20 3.11 2.17 .130 1.97 5.16
2965082 17050119050 .7500 3/4 - 19,050 20 3.11 2.17 .130 1.97 5.16
2965083 17050119500 .7677 - - 19,500 20 3.11 2.17 .134 1.97 5.16
2965084 17050119800 .7795 - - 19,800 20 3.11 2.17 .136 1.97 5.16
2965085 17050120000 .7874 - - 20,000 20 3.11 2.17 .137 1.97 5.16
Tolerances
METRIC INCH
D1 Tolerance m7 D Tolerance h6 D1 Tolerance m7 D Tolerance h6
>3 to 6 0,004/0,016 6 0,000/-0,008 > .1181 to .2362 .0002/.0006 .2362 .0000/-.0003
>6 to 10 0,006/0,021 8 to 10 0,000/-0,009 > .2362 to .3937 .0002/.0008 .315 to .3937 .0000/-.0004
>10 to 18 0,007/0,025 12 to 18 0,000/-0,011 > .3937 to .7087 .0003/.0010 .4724 to .7087 .0000/-.0004
>18 to 21 0,008/0,029 20 0,000/-0,013 > .7087 to .7874 .0003/.0011 .7874 .0000/-.0005
