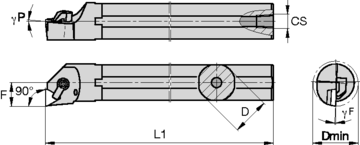

Internal Boring Toolholders
Clampling System M A-CTFP 0° |
|
|
|
  |
Steel shank with through coolant.
See pages B40–B41, B59,
and B86–B87 for inserts.
|
|
|
| Order
# |
catalog
number |
D |
D min |
F |
L1 |
CS |
γF° |
γP° |
gage insert |
shim |
shim pin |
pin punch |
lever |
lever screw |
Torx plus |
| Right Hand |
| 2951396 |
A16TCTFPR3 |
1.000 |
1.200 |
.640 |
12.00 |
1/4-18 NPT |
0.0 |
5.0 |
TP..322 |
|
|
- |
CK20 |
STC11 |
1/8 |
| 2951400 |
A20UCTFPR3 |
1.250 |
1.470 |
.765 |
14.00 |
1/4-18 NPT |
-3.0 |
5.0 |
TP..322 |
SM41 |
S19 |
1/16 |
CK10 |
STC8 |
5/32 |
|
