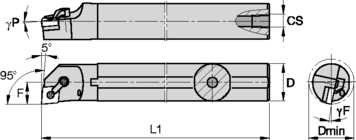

Internal Boring Toolholders
Clampling System M A-MCLN -5°




    CLICK TOOL NUMBERS TO ORDER
Order # catalog number D D min F L1 CS γF° γP° gage insert shim shim pin pin punch lever lever screw Torx plus
Right Hand
2993573 A16TMCLNR4 1.000 1.200   .640 12.00 1/4-18 NPT -14.0 -5.0 CN..432 KL44 3/32 CK20 STC11 1/8
2951402 A20UMCLNR4 1.250 1.470   .760 14.00 1/4-18 NPT -14.0 -5.0 CN..432 ICSN433 KL46 3/32 CK20 STC20 1/8
2951410 A24UMCLNR4 1.500 1.760   .885 14.00 1/4-18 NPT -12.0 -5.0 CN..432 ICSN433 KL46 3/32 CK20 STC20 1/8
2951420 A28UMCLNR4 1.750 2.010 1.010 14.00 1/4-18 NPT -12.0 -5.0 CN..432 ICSN433 KL46 3/32 CK20 STC20 1/8
2951421 A32VMCLNR6 2.000 2.400 1.276 16.00 1/4-18 NPT -12.0 -5.0 CN..643 ICSN633 KL68 9/64 CK12 STC4 5/32
2951424 A40VMCLNR6 2.500 3.030 1.526 16.00 1/4-18 NPT -10.0 -5.0 CN..643 ICSN633 KL68 9/64 CK12 STC4 5/32
Left Hand
2951397 A16TMCLNL4 1.000 1.200   .640 12.00 1/4-18 NPT -14.0 -5.0 CN..432 KL44 3/32 CK20 STC11 1/8
2951401 A20UMCLNL4 1.250 1.470   .760 14.00 1/4-18 NPT -14.0 -5.0 CN..432 ICSN433 KL46 3/32 CK20 STC20 1/8
2951409 A24UMCLNL4 1.500 1.760   .885 14.00 1/4-18 NPT -12.0 -5.0 CN..432 ICSN433 KL46 3/32 CK20 STC20 1/8
2951419 A28UMCLNL4 1.750 2.010 1.010 14.00 1/4-18 NPT -12.0 -5.0 CN..432 ICSN433 KL46 3/32 CK20 STC20 1/8
