Tool Speed Calculator
Boring Bars

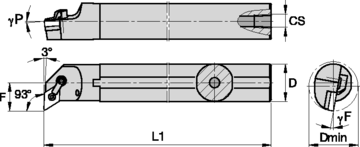

Clampling System M A-MDUN -3°




    CLICK TOOL NUMBERS TO ORDER
Order # catalog number D D min F L1 CS γF° γP° gage insert shim shim pin pin punch lever lever screw Torx plus
Right Hand
2951404 A20UMDUNR4 1.250 1.705   .995 14.00 1/4-18 NPT -12.0 -5.0 DN..432 IDSN433 KL46L 3/32 CK12 STC4 5/32
2951412 A24UMDUNR4 1.500 2.000 1.120 14.00 1/4-18 NPT -10.0 -5.0 DN..432 IDSN433 KL46L 3/32 CK12 STC4 5/32
2951423 A32VMDUNR4 2.000 2.500 1.370 16.00 1/4-18 NPT -8.0 -5.0 DN..432 IDSN433 KL46L 3/32 CK12 STC4 5/32
Left Hand
2951403 A20UMDUNL4 1.250 1.705   .995 14.00 1/4-18 NPT -12.0 -5.0 DN..432 IDSN433 KL46L 3/32 CK12 STC4 5/32
2951411 A24UMDUNL4 1.500 2.000 1.120 14.00 1/4-18 NPT -10.0 -5.0 DN..432 IDSN433 KL46L 3/32 CK12 STC4 5/32
2951422 A32VMDUNL4 2.000 2.500 1.370 16.00 1/4-18 NPT -8.0 -5.0 DN..432 IDSN433 KL46L 3/32 CK12 STC4 5/32
