Tool Speed Calculator
Boring Bars
Clampling System M A-MTFN 0°




    CLICK TOOL NUMBERS TO ORDER

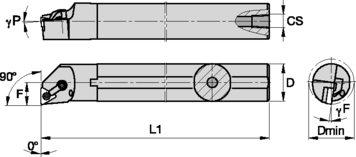

Order # catalog number D D min F L1 CS γF° γP° gage insert shim shim pin pin punch lever lever screw Torx plus
Right Hand
2951405 A20UMTFNR3 1.250 1.470 .760 14.00 1/4-18 NPT -12.0 -5.0 TN..332 KL33L 5/64 CK7 STC9 3/32
2951414 A24UMTFNR3 1.500 1.760 .890 14.00 1/4-18 NPT -10.0 -5.0 TN..332 ITSN333 KL34L 5/64 CK7 STC9 3/32
2951415 A24UMTFNR4 1.500 1.760 .890 14.00 1/4-18 NPT -10.0 -5.0 TN..332 ITSN433 KL46 3/32 CK9 STC4 5/32
