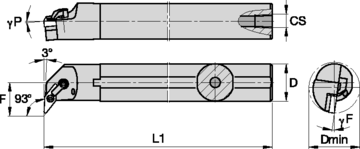

Internal Boring Toolholders
Clampling System M A-MVUN -3°




    CLICK TOOL NUMBERS TO ORDER
Order # catalog number D D min F L1 CS γF° γP° gage insert shim shim pin pin punch lever lever screw Torx plus
Right Hand
3883412 A20UMVUNR3 1.250 1.705 1.0000 14.00 1/4-18 NPT -12.0 -5.0 VN..332 IVSN322 KL34L 5/64 CK43 STC4 5/32
3883414 A24UMVUNR3 1.500 2.000 1.1250 14.00 1/4-18 NPT -12.0 -5.0 VN..332 IVSN322 KL34L 5/64 CK43 STC4 5/32
Left Hand
3883411 A20UMVUNL3 1.250 1.705 1.0000 14.00 1/4-18 NPT -12.0 -5.0 VN..332 IVSN322 KL34L 5/64 CK43 STC4 5/32
3883413 A24UMVUNL3 1.500 2.000 1.1250 14.00 1/4-18 NPT -12.0 -5.0 VN..332 IVSN322 KL34L 5/64 CK43 STC4 5/32
