Tool Speed Calculator
Boring Bars
Clampling System M A-MWLN 5°




    CLICK TOOL NUMBERS TO ORDER

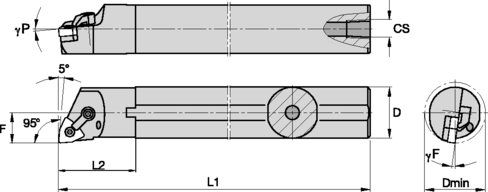

Order # catalog number D D min F L1 CS γF° γP° gage insert shim shim pin pin punch lever lever screw Torx plus
Right Hand
2951390 A12SMWLNR3   .750   .930 .500 10.00 1/8-27 NPT -14.0 -5.0 WN..332 KL33L 5/64 CK6 STC5 3/32
2951398 A16TMWLNR4 1.000 1.220 .640 12.00 1/4-18 NPT -12.0 -5.0 WN..432 KL44 3/32 CK20 STC11 1/8
2951407 A20UMWLNR4 1.250 1.470 .765 14.00 1/4-18 NPT -14.0 -5.0 WN..432 IWSN433 KL46 3/32 CK20 STC20 1/8
2951417 A24UMWLNR4 1.500 1.760 .890 14.00 1/4-18 NPT -12.0 -5.0 WN..432 IWSN433 KL46 3/32 CK20 STC20 1/8
Left Hand
2951406 A20UMWLNL4 1.250 1.470 .765 14.00 1/4-18 NPT -14.0 -5.0 WN..432 IWSN433 KL46 3/32 CK20 STC20 1/8
2951416 A24UMWLNL4 1.500 1.760 .890 14.00 1/4-18 NPT -12.0 -5.0 WN..432 IWSN433 KL46 3/32 CK20 STC20 1/8
