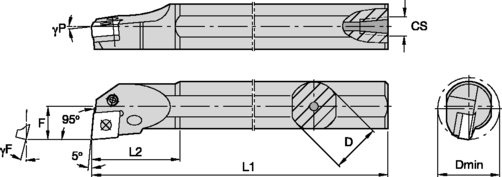

Internal Boring Toolholders
Clampling System S A-PCLN 95° |
|
|
|
  |
Steel shank with through coolant
See pages B16–B19, B46, B50,
and B72–B73 for inserts. |
|
|
| Order
# |
catalog
number |
D |
D min |
F |
L1 |
L2 |
CS |
γF° |
γP° |
gage insert |
shim |
shim pin |
pin punch |
lever |
lever screw |
Torx plus |
| Right Hand |
| 3883468 |
A25TPCLNR12 |
25 |
32 |
17,0 |
300 |
40 |
1/4-18 NPT |
-12.0 |
-5.0 |
CN..120408 |
|
|
|
511.022 |
514.122 |
10 IP |
| 3883466 |
A32UPCLNR12 |
32 |
40 |
22,0 |
350 |
50 |
1/4-18 NPT |
-10.0 |
-5.0 |
CN..120408 |
512.112 |
513.023 |
515.018 |
511.023 |
514.123 |
15 IP |
| 3883463 |
A40VPCLNR12 |
40 |
50 |
27,0 |
400 |
55 |
1/4-18 NPT |
-10.0 |
-5.0 |
CN..120408 |
512.112 |
513.023 |
515.018 |
511.023 |
514.123 |
15 IP |
| 3883442 |
A40VPCLNR16 |
40 |
50 |
27,0 |
400 |
55 |
1/4-18 NPT |
-11.0 |
-5.0 |
CN..160612 |
512.117 |
513.025 |
515.022 |
511.025 |
514.125 |
15 IP |
| Left Hand |
| 3883469 |
A25TPCLNL12 |
25 |
32 |
17,0 |
300 |
40 |
1/4-18 NPT |
-12.0 |
-5.0 |
CN..120408 |
|
|
|
511.022 |
514.122 |
10 IP |
| 3883467 |
A32UPCLNL12 |
32 |
40 |
22,0 |
350 |
50 |
1/4-18 NPT |
-10.0 |
-5.0 |
CN..120408 |
512.112 |
513.023 |
515.018 |
511.023 |
514.123 |
15 IP |
| 3883465 |
A40VPCLNL12 |
40 |
50 |
27,0 |
400 |
55 |
1/4-18 NPT |
-10.0 |
-5.0 |
CN..120408 |
512.112 |
513.023 |
515.018 |
511.023 |
514.123 |
15 IP |
| 3883464 |
A40VPCLNL16 |
40 |
50 |
27,0 |
400 |
55 |
1/4-18 NPT |
-11.0 |
-5.0 |
CN..160612 |
512.117 |
513.025 |
515.022 |
511.025 |
514.125 |
15 IP |
|
|
