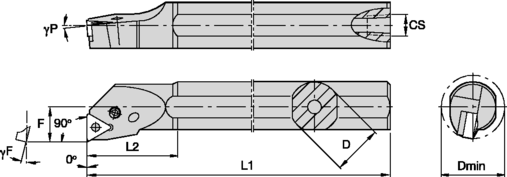

Internal Boring Toolholders
Clampling System S A-PTFN 90° |
|
|
|
  |
Steel shank with through coolant
See pages B36–B39, B58, and B83 for inserts. |
|
|
| Order
# |
catalog
number |
D |
D min |
F |
L1 |
L2 |
CS |
γF° |
γP° |
gage insert |
shim |
shim pin |
pin punch |
lever |
lever screw |
Torx plus |
| Right Hand |
| 3883263 |
A25TPTFNR16 |
25 |
32 |
17,0 |
300 |
40 |
1/4-18 NPT |
-12.0 |
-5.0 |
TN..160408 |
512.013 |
513.018 |
515.018 |
511.018 |
514.118 |
10 IP |
| 3883151 |
A32UPTFNR16 |
32 |
40 |
22,0 |
350 |
50 |
1/4-18 NPT |
-10.0 |
-5.0 |
TN..160408 |
512.013 |
513.018 |
515.018 |
511.018 |
514.118 |
10 IP |
| 3883149 |
A40VPTFNR22 |
40 |
48 |
27,0 |
400 |
55 |
1/4-18 NPT |
-10.0 |
-5.0 |
TN..220408 |
512.023 |
513.023 |
515.018 |
511.023 |
514.123 |
15 IP |
| Left Hand |
| 3883264 |
A25TPTFNL16 |
25 |
32 |
17,0 |
300 |
40 |
1/4-18 NPT |
-12.0 |
-5.0 |
TN..160408 |
512.013 |
513.018 |
515.018 |
511.018 |
514.118 |
10 IP |
| 3883152 |
A32UPTFNL16 |
32 |
40 |
22,0 |
350 |
50 |
1/4-18 NPT |
-10.0 |
-5.0 |
TN..160408 |
512.013 |
513.018 |
515.018 |
511.018 |
514.118 |
10 IP |
| 3883150 |
A40VPTFNL22 |
40 |
48 |
27,0 |
400 |
55 |
1/4-18 NPT |
-10.0 |
-5.0 |
TN..220408 |
512.023 |
513.023 |
515.018 |
511.023 |
514.123 |
15 IP |
|
|
