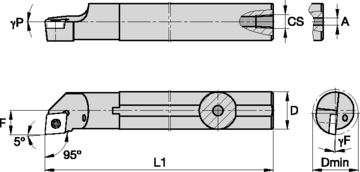

Internal Boring Toolholders
Clampling System S A-SCLC -5°



    CLICK TOOL NUMBERS TO ORDER
Order # catalog number D D min F L1 A CS γF° γP° gage insert insert screw insert screw ID drive size
Right Hand
2951383 A06MSCLCR2   .375   .480 .250   6.00 .125 - -8.0 0.0 CC..2151 MS1153 T7
2951386 A08RSCLCR2   .500   .600 .312   8.00 - 1/16-27 NPT -7.0 0.0 CC..2151 MS1153 T7
2951388 A10SSCLCR2   .625   .770 .406 10.00 - 1/8-27 NPT -5.0 0.0 CC..2151 MS1153 T7
2951392 A12SSCLCR3   .750   .930 .500 10.00 - 1/8-27 NPT -5.0 0.0 CC..3252 MS1155 T15
2951399 A16TSCLCR3 1.000 1.200 .640 12.00 - 1/4-18 NPT -4.0 0.0 CC..3252 MS1155 T15
2951408 A20USCLCR4 1.250 1.470 .765 14.00 - 1/4-18 NPT -5.0 0.0 CC..432 MS1157 T15
2951418 A24USCLCR4 1.500 1.760 .890 14.00 - 1/4-18 NPT -4.0 0.0 CC..432 MS1157 T15
Left Hand
2951391 A12SSCLCL3   .750   .930 .500 10.00 - 1/8-27 NPT -5.0 0.0 CC..3252 MS1155 T15
