Miniature Tool Holders

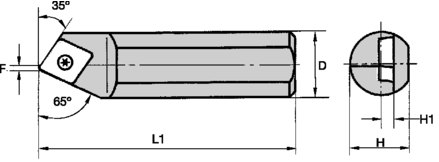

Clampling System S LR Series 65° Boring bar |
|
|
|
  |
Steel shank without through coolant
See pages B14–B16, B46,
and B70–B71 for inserts. |
|
|
| Order
# |
ISO catalog
number |
B |
F |
H |
H1 |
L1 |
gage insert |
insert screw |
Torx |
Nm |
| Right Hand |
| 2031097 |
S08ASCNCR06 |
8,00 |
1,00 |
7,00 |
2,00 |
32,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
| 2024106 |
S10BSCQCR06 |
10,00 |
1,00 |
9,00 |
2,00 |
40,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
| Left Hand |
| 2031096 |
S08ASCNCL066 |
8,00 |
1,00 |
7,00 |
2,00 |
32,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
| 2024105 |
S10BSCQCL06 |
10,00 |
1,00 |
9,00 |
2,00 |
40,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
|
|
