Miniature Tool Holders

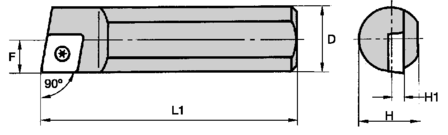

Clampling System S LR Series 90° Boring bar |
|
|
|
  |
Steel shank without through coolant
See pages B14–B16, B46,
and B70–B71 for inserts. |
|
|
| Order
# |
ISO catalog
number |
B |
F |
H |
H1 |
L1 |
gage insert |
insert screw |
Torx |
Nm |
| Right Hand |
| 2031103 |
S10BSCACR06 |
10,00 |
5,30 |
9,00 |
7,00 |
40,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
| 2024123 |
S12DSCACR06 |
12,00 |
6,30 |
11,00 |
8,00 |
60,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
| 2031118 |
S16FSCACR09 |
16,00 |
8,00 |
15,00 |
10,00 |
80,00 |
CC..0903.. |
12148095100 |
T15 |
3,0 |
| 2030995 |
12157301400 |
16,00 |
8,00 |
15,00 |
10,00 |
80,00 |
CC..09T3.. |
12148095100 |
T15 |
3,0 |
| 2030999 |
12157301600 |
20,00 |
10,00 |
18,00 |
10,50 |
125,00 |
CC..09T3.. |
12148095100 |
T15 |
3,0 |
| Left Hand |
| 2031095 |
S08ASCACL069 |
8,00 |
4,30 |
7,00 |
6,00 |
32,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
| 2031102 |
S10BSCACL06 |
10,00 |
5,30 |
9,00 |
7,00 |
40,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
| 2012133 |
S12DSCACL06 |
12,00 |
6,30 |
11,00 |
8,00 |
60,00 |
CC..0602.. |
12148068700 |
T8 |
1,0 |
| 2012209 |
S16FSCACL09 |
16,00 |
8,00 |
15,00 |
10,00 |
80,00 |
CC..0903.. |
12148095100 |
T15 |
3,0 |
| 2030993 |
12157301500 |
16,00 |
8,00 |
15,00 |
10,00 |
80,00 |
CC..09T3.. |
12148095100 |
T15 |
3,0 |
| 2030998 |
12157301700 |
20,00 |
10,00 |
18,00 |
10,50 |
125,00 |
CC..09T3.. |
12148095100 |
T15 |
3,0 |
|
|
