Miniature Tool Holders

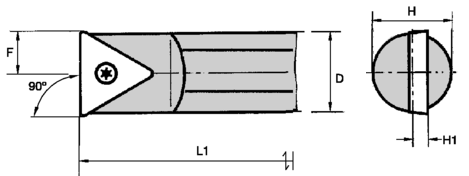

Clampling System S LR Series 90° Boring bar |
|
|
|
  |
Steel shank without through coolant
See pages B35, B48, and B82 for inserts. |
|
|
| Order
# |
ISO catalog
number |
B |
F |
H |
H1 |
L1 |
gage insert |
insert screw |
Torx |
Nm |
| Left Hand |
| 2031104 |
S10BSTCCN11 |
10,00 |
5,20 |
9,00 |
2,00 |
40,00 |
TC..1102.. |
12148068700 |
T8 |
1,0 |
| 2012225 |
S16FSTCCN16 |
16,00 |
7,65 |
14,50 |
2,00 |
80,00 |
TC..16T3.. |
12148038800 |
T15 |
3,0 |
|
|
