ATBI

A/B Series

Small Hole Toolholders - ATBI

CLICK TOOL NUMBERS TO ORDER

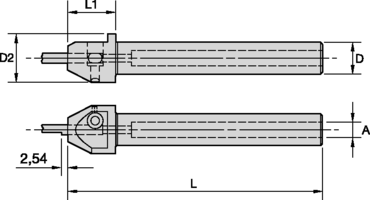

ISO catalog number	ANSI catalog number	D	D2	L	L1	A	wedge	wedge screw	hex
2839848	ATBI37515	.375	.760	1.500	.750	.246	AW250	AS832	5/64
2839842	ATBI50015	.500	.760	1.500	.750	.246	AW250	AS832	5/64
3896119	ATBI5004	.500	.760	4.000	.750	.246	AW250	AS832	5/64
2839830	ATBI6254	.625	.760	4.000	.750	.246	AW250	AS832	5/64
2839826	ATBI7504	.750	.760	4.000	.750	.246	AW250	AS832	5/64
2839821	ATBI10004	1.000	.760	4.000	.750	.246	AW250	AS832	5/64

NOTE: These tools will accept any A-Series Solid Carbide Insert (ABD, ABD-M, AGD, APD, and ATD).
