BSBI

A/B Series

Small Hole Toolholders - BSBI

CLICK TOOL NUMBERS TO ORDER

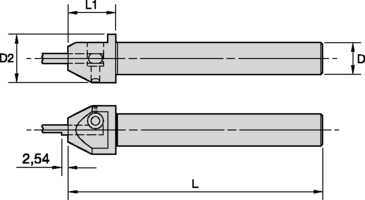

ISO catalog number	ANSI catalog number	D	D2	L	L1	wedge	wedge screw	hex
2832989	BSBI5006	.500	1.010	6.000	1.150	BW312	BS832	5/64
2832984	BSBI6256	.625	1.010	6.000	1.150	BW312	BS832	5/64
2832980	BSBI7506	.750	1.010	6.000	1.150	BW312	BS832	5/64
2832974	BSBI10006	1.000	1.010	6.000	1.150	BW312	BS832	5/64

NOTE: These tools will accept any B-Series Solid Carbide Insert (BB and BP).
