Quadralock™ Solid Carbide Inserts
MB


P ● ○
M ● ○
K ○ ●
N ○ ● ●
S ● ○
H ●
CG5 CM1 CBN6 CPD1
● first choice
○ alternate choice

    CLICK TOOL NUMBERS TO ORDER

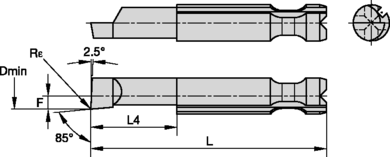

  D min L4 L F Rε
Order # ANSI catalog
number 		mm in mm in mm in mm in mm in
Right hand
MB010062R MB010062R 0,25 .010   1,58 .062 20,57   .810 0,09 .004 0,03 .001
MB030187R MB030187R 0,76 .030   4,75 .187 21,26   .837 0,34 .014 0,03 .001
MB062187R MB062187R 1,58 .062   5,41 .213 21,92   .863 0,66 .026 0,05 .002
MB062312R MB062312R 1,58 .062   7,93 .312 24,44   .962 0,66 .026 0,05 .002
MB094281R MB094281R 2,39 .094   7,14 .281 23,65   .931 1,04 .041 0,05 .002
MB094500R MB094500R 2,39 .094 12,70 .500 29,21 1.150 1,04 .041 0,05 .002
MB125375R MB125375R 3,18 .125   9,53 .375 26,04 1.025 1,45 .057 0,10 .004
MB125625R MB125625R 3,18 .125 15,88 .625 32,39 1.275 1,45 .057 0,10 .004
MB156500R MB156500R 3,96 .156 12,70 .500 29,21 1.150 1,85 .073 0,10 .004
MB156875R MB156875R 3,96 .156 22,23 .875 38,74 1.525 1,85 .073 0,10 .004
Left hand
MB010062L MB010062L 0,25 .010   1,58 .062 20,57   .810 0,09 .004 0,03 .001
MB030187L MB030187L 0,76 .030   4,75 .187 21,26   .837 0,34 .014 0,03 .001
MB062187L MB062187L 1,58 .062   5,41 .213 21,92   .863 0,66 .026 0,05 .002
MB062312L MB062312L 1,58 .062   7,93 .312 24,44   .962 0,66 .026 0,05 .002
MB094281L MB094281L 2,39 .094   7,14 .281 23,65   .931 1,04 .041 0,05 .002
MB094500L MB094500L 2,39 .094 12,70 .500 29,21 1.150 1,04 .041 0,05 .002
MB125375L MB125375L 3,18 .125   9,53 .375 26,04 1.025 1,45 .057 0,10 .004
MB125625L MB125625L 3,18 .125 15,88 .625 32,39 1.275 1,45 .057 0,10 .004
MB156500L MB156500L 3,96 .156 12,70 .500 29,21 1.150 1,85 .073 0,10 .004
MB156875L MB156875L 3,96 .156 22,23 .875 38,74 1.525 1,85 .073 0,10 .004
