Quadralock™ Solid Carbide Inserts
MG


P ● ○
M ● ○
K ○ ●
N ○ ● ●
S ● ○
H ●
CG5 CM1 CBN6 CPD1
● first choice
○ alternate choice

    CLICK TOOL NUMBERS TO ORDER

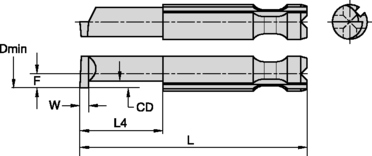

  D min L4 L F CD W
Order # ANSI catalog
number 		mm in mm in mm in mm in mm in mm in
Right hand
MG095030R MG095030R 2,79 .110   7,93 .312 24,44   .962 1,17 .046 0,76 .030 0,76 .030
MG125040R MG125040R 3,56 .140   9,53 .375 26,04 1.025 1,55 .061 0,89 .035 1,02 .040
MG156050R MG156050R 4,45 .175 12,70 .500 29,21 1.150 1,93 .076 1,27 .050 1,27 .050
Left hand
MG095030L MG095030L 2,79 .110   7,93 .312 24,44   .962 1,17 .046 0,76 .030 0,76 .030
MG125040L MG125040L 3,56 .140   9,53 .375 26,04 1.025 1,55 .061 0,89 .035 1,02 .040
MG156050L MG156050L 4,45 .175 12,70 .500 29,21 1.150 1,93 .076 1,27 .050 1,27 .050
