Tool Speed Calculator
Quadralock™ Solid Carbide Inserts
MP


P ● ○
M ● ○
K ○ ●
N ○ ● ●
S ● ○
H ●
CG5 CM1 CBN6 CPD1
● first choice
○ alternate choice

    CLICK TOOL NUMBERS TO ORDER

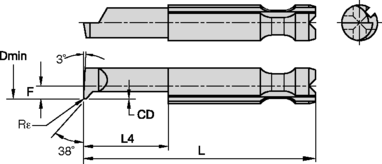

  D min L4 L F CD Rε
Order # ANSI catalog
number 		mm in mm in mm in mm in mm in mm in
Right hand
MP062187R MP062187R 1,58 .062   4,75 .187 21,26   .837 0,66 .026 0,43 .017 0,10 .004
MP094281R MP094281R 2,39 .094   7,14 .281 23,65   .931 1,07 .042 0,71 .028 0,10 .004
MP125375R MP125375R 3,18 .125   9,53 .375 26,04 1.025 1,45 .057 1,02 .040 0,20 .008
MP156500R MP156500R 3,96 .156 12,70 .500 29,21 1.150 1,85 .073 1,27 .050 0,20 .008
Left hand
MP062187L MP062187L 1,58 .062   4,75 .187 21,26   .837 0,66 .026 0,43 .017 0,10 .004
MP094281L MP094281L 2,39 .094   7,14 .281 23,65   .931 1,07 .042 0,71 .028 0,10 .004
MP125375L MP125375L 3,18 .125   9,53 .375 26,04 1.025 1,45 .057 1,02 .040 0,20 .008
MP156500L MP156500L 3,96 .156 12,70 .500 29,21 1.150 1,85 .073 1,27 .050 0,20 .008
