Quadralockâ„¢ Small Hole Toolholders
MTMI



    CLICK TOOL NUMBERS TO ORDER

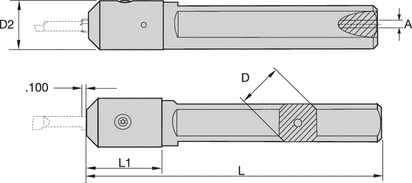

Order # catalog number D D2 L L1 A insert screw hex
2839815 MTMI37515   .375 .510 1.500 .750 .118 MSM46 2 mm
2839803 MTMI50015   .500 .510 1.500 .750 .118 MSM46 2 mm
2839797 MTMI5004   .500 .510 4.000 .750 .118 MSM46 2 mm
2839792 MTMI62515   .625 .510 1.500 .760 .118 MSM46 2 mm
2839785 MTMI6254   .625 .510 4.000 .760 .118 MSM46 2 mm
2839779 MTMI75015   .750 .510 1.500 .760 .118 MSM46 2 mm
2839774 MTMI7504   .750 .510 4.000 .760 .118 MSM46 2 mm
3896197 MTMI10005 1.000 .510 5.000 .760 .118 MSM46 2 mm
