Tool Speed Calculator
Solid Carbide Bars - Carbide Face Groove Inserts
CFG



● first choice
○ alternate choice
P ● ○
M ● ○
K ○ ●
N ○ ● ●
S ● ○
H ●
CG5 CM1 CBN6 CPD1

    CLICK TOOL NUMBERS TO ORDER

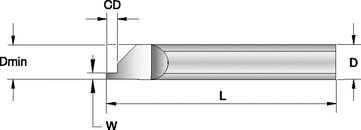

  D D min L CD W
ISO catalog # ANSI catalog # mm in mm in mm in mm in mm in
Right hand
CFG40200502500R CFG40200502500R 6,35 .250 6,60 .260 63,50 2.500 1,27 .050 0,51 .020
CFG40300502500R CFG40300502500R 6,35 .250 6,60 .260 63,50 2.500 1,27 .050 0,76 .030
CFG40400502500R CFG40400502500R 6,35 .250 6,60 .260 63,50 2.500 1,27 .050 1,02 .040
CFG40500502500R CFG40500502500R 6,35 .250 6,60 .260 63,50 2.500 1,27 .050 1,27 .050
CFG50300502500R CFG50300502500R 7,94 .313 8,13 .320 63,50 2.500 1,27 .050 0,76 .030
CFG50400502500R CFG50400502500R 7,94 .313 8,13 .320 63,50 2.500 1,27 .050 1,02 .040
CFG50500502500R CFG50500502500R 7,94 .313 8,13 .320 63,50 2.500 1,27 .050 1,27 .050
CFG50620752500R CFG50620752500R 7,94 .313 8,13 .320 63,50 2.500 1,91 .075 1,58 .062
CFG60300502500R CFG60300502500R 9,53 .375 9,78 .385 63,50 2.500 1,27 .050 0,76 .030
CFG60620752500R CFG60620752500R 9,53 .375 9,78 .385 63,50 2.500 1,91 .075 1,58 .062
CFG60931002500R CFG60931002500R 9,53 .375 9,78 .385 63,50 2.500 2,54 .100 2,36 .093
CFG61251002500R CFG61251002500R 9,53 .375 9,78 .385 63,50 2.500 2,54 .100 3,18 .125
CFG80620753000R CFG80620753000R 12,70 .500 12,95 .510 76,20 3.000 1,91 .075 1,58 .062
CFG80931003000R CFG80931003000R 12,70 .500 12,95 .510 76,20 3.000 2,54 .100 2,36 .093
CFG81251003000R CFG81251003000R 12,70 .500 12,95 .510 76,20 3.000 2,54 .100 3,18 .125
CFG81561003000R CFG81561003000R 12,70 .500 12,95 .510 76,20 3.000 2,54 .100 3,96 .156
CFG100620753500R CFG100620753500R 15,88 .625 16,13 .635 88,90 3.500 1,91 .075 1,58 .062
CFG100931003500R CFG100931003500R 15,88 .625 16,13 .635 88,90 3.500 2,54 .100 2,36 .093
CFG101251003500R CFG101251003500R 15,88 .625 16,13 .635 88,90 3.500 2,54 .100 3,18 .125
CFG101561003500R CFG101561003500R 15,88 .625 16,13 .635 88,90 3.500 2,54 .100 3,96 .156
CFG101871503500R CFG101871503500R 15,88 .625 16,13 .635 88,90 3.500 3,81 .150 4,75 .187
CFG120620754000R CFG120620754000R 19,05 .750 19,30 .760 101,60 4.000 1,91 .075 1,58 .062
CFG120931004000R CFG120931004000R 19,05 .750 19,30 .760 101,60 4.000 2,54 .100 2,36 .093
CFG121251004000R CFG121251004000R 19,05 .750 19,30 .760 101,60 4.000 2,54 .100 3,18 .125
CFG121561004000R CFG121561004000R 19,05 .750 19,30 .760 101,60 4.000 2,54 .100 3,96 .156
CFG121871504000R CFG121871504000R 19,05 .750 19,30 .760 101,60 4.000 3,81 .150 4,75 .187
CFG122502504000R CFG122502504000R 19,05 .750 19,30 .760 101,60 4.000 6,35 .250 6,35 .250
