Solid Carbide Bars - Carbide Thread Relief Inserts
CTR



● first choice
○ alternate choice
P ● ○
M ● ○
K ○ ●
N ○ ● ●
S ● ○
H ●
CG5 CM1 CBN6 CPD1

    CLICK TOOL NUMBERS TO ORDER

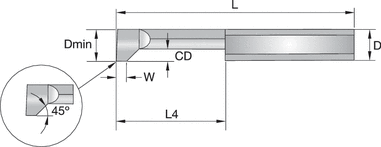

  D D min L4 L CD W
ISO catalog # ANSI catalog # mm in mm in mm in mm in mm in mm in
Right hand
CTR21253751500R CTR21253751500R   3,18 .125   3,18 .125   9,53   .375 38,10 1.500 1,27 .050 1,58 .062
CTR31873752000R CTR31873752000R   4,76 .188   4,75 .187   9,53   .375 50,80 2.000 1,27 .050 1,98 .078
CTR31877502000R CTR31877502000R   4,76 .188   4,75 .187 19,05   .750 50,80 2.000 1,27 .050 1,98 .078
CTR42505002500R CTR42505002500R   6,35 .250   6,35 .250 12,70   .500 63,50 2.500 1,52 .060 2,39 .094
CTR425010002500R CTR425010002500R   6,35 .250   6,35 .250 25,40 1.000 63,50 2.500 1,52 .060 2,39 .094
CTR53127502500R CTR53127502500R   7,94 .313   7,93 .312 19,05   .750 63,50 2.500 2,16 .085 2,39 .094
CTR531212502500R CTR531212502500R   7,94 .313   7,93 .312 31,75 1.250 63,50 2.500 2,16 .085 2,39 .094
CTR63757502500R CTR63757502500R   9,53 .375   9,53 .375 19,05   .750 63,50 2.500 2,79 .110 3,18 .125
CTR637512502500R CTR637512502500R   9,53 .375   9,53 .375 31,75 1.250 63,50 2.500 2,79 .110 3,18 .125
CTR850010003000R CTR850010003000R 12,70 .500 12,70 .500 25,40 1.000 76,20 3.000 3,43 .135 3,96 .156
CTR850015003000R CTR850015003000R 12,70 .500 12,70 .500 38,10 1.500 76,20 3.000 3,43 .135 3,96 .156
