Solid Carbide Bars - Carbide Undercut Groove Inserts
CUG



● first choice
○ alternate choice
P ● ○
M ● ○
K ○ ●
N ○ ● ●
S ● ○
H ●
CG5 CM1 CBN6 CPD1

    CLICK TOOL NUMBERS TO ORDER

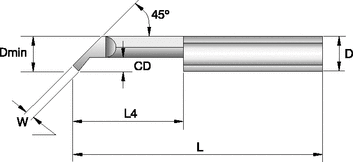

  D D min L4 L CD W
ISO catalog # ANSI catalog # mm in mm in mm in mm in mm in mm in
Right hand
CUG40205002500R CUG40205002500R   6,35 .250   6,60 .260 12,70   .500 63,50 2.500 1,02 .040 0,51 .020
CUG40305002500R CUG40305002500R   6,35 .250   6,60 .260 12,70   .500 63,50 2.500 1,27 .050 0,76 .030
CUG402010002500R CUG402010002500R   6,35 .250   6,60 .260 25,40 1.000 63,50 2.500 1,02 .040 0,51 .020
CUG403010002500R CUG403010002500R   6,35 .250   6,60 .260 25,40 1.000 63,50 2.500 1,27 .050 0,76 .030
CUG50505002500R CUG50505002500R   7,94 .313   8,26 .325 12,70   .500 63,50 2.500 2,54 .100 1,27 .050
CUG505010002500R CUG505010002500R   7,94 .313   8,26 .325 25,40 1.000 63,50 2.500 2,54 .100 1,27 .050
CUG506210002500R CUG506210002500R   7,94 .313   8,26 .325 25,40 1.000 63,50 2.500 2,54 .100 1,58 .062
CUG506212502500R CUG506212502500R   7,94 .313   8,26 .325 31,75 1.250 63,50 2.500 2,54 .100 1,58 .062
CUG606210002500R CUG606210002500R   9,53 .375   9,78 .385 25,40 1.000 63,50 2.500 2,54 .100 1,58 .062
CUG609310002500R CUG609310002500R   9,53 .375   9,78 .385 25,40 1.000 63,50 2.500 2,54 .100 2,36 .093
CUG612510002500R CUG612510002500R   9,53 .375   9,78 .385 25,40 1.000 63,50 2.500 2,54 .100 3,18 .125
CUG606212502500R CUG606212502500R   9,53 .375   9,78 .385 31,75 1.250 63,50 2.500 2,54 .100 1,58 .062
CUG609312502500R CUG609312502500R   9,53 .375   9,78 .385 31,75 1.250 63,50 2.500 2,54 .100 2,36 .093
CUG612512502500R CUG612512502500R   9,53 .375   9,78 .385 31,75 1.250 63,50 2.500 2,54 .100 3,18 .125
CUG806210003000R CUG806210003000R 12,70 .500 12,95 .510 25,40 1.000 76,20 3.000 3,81 .150 1,58 .062
CUG809310003000R CUG809310003000R 12,70 .500 12,95 .510 25,40 1.000 76,20 3.000 3,81 .150 2,36 .093
CUG812510003000R CUG812510003000R 12,70 .500 12,95 .510 25,40 1.000 76,20 3.000 3,81 .150 3,18 .125
CUG806215003000R CUG806215003000R 12,70 .500 12,95 .510 38,10 1.500 76,20 3.000 3,81 .150 1,58 .062
CUG809315003000R CUG809315003000R 12,70 .500 12,95 .510 38,10 1.500 76,20 3.000 3,81 .150 2,36 .093
CUG812515003000R CUG812515003000R 12,70 .500 12,95 .510 38,10 1.500 76,20 3.000 3,81 .150 3,18 .125
