Solid Carbide Bars - Carbide Undercut Profile Groove Inserts
CUPG



● first choice
○ alternate choice
P ● ○
M ● ○
K ○ ●
N ○ ● ●
S ● ○
H ●
CG5 CM1 CBN6 CPD1

    CLICK TOOL NUMBERS TO ORDER

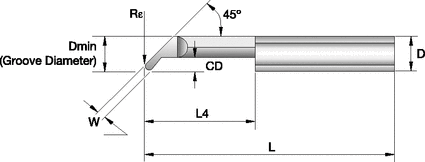

  D D min L4 L CD W Rε
ISO catalog # ANSI catalog # mm in mm in mm in mm in mm in mm in mm in
Right hand
CUPG40205002500R CUPG40205002500R   6,35 .250   6,60 .260 12,70   .500 63,50 2.500 1,02 .040 0,51 .020 0,25 .010
CUPG40305002500R CUPG40305002500R   6,35 .250   6,60 .260 12,70   .500 63,50 2.500 1,27 .050 0,76 .030 0,38 .015
CUPG402010002500R CUPG402010002500R   6,35 .250   6,60 .260 25,40 1.000 63,50 2.500 1,02 .040 0,51 .020 0,25 .010
CUPG403010002500R CUPG403010002500R   6,35 .250   6,60 .260 25,40 1.000 63,50 2.500 1,27 .050 0,76 .030 0,38 .015
CUPG50505002500R CUPG50505002500R   7,94 .313   8,26 .325 12,70   .500 63,50 2.500 2,54 .100 1,27 .050 0,64 .025
CUPG505010002500R CUPG505010002500R   7,94 .313   8,26 .325 25,40 1.000 63,50 2.500 2,54 .100 1,27 .050 0,64 .025
CUPG506210002500R CUPG506210002500R   7,94 .313   8,26 .325 25,40 1.000 63,50 2.500 2,54 .100 1,58 .062 0,79 .031
CUPG506212502500R CUPG506212502500R   7,94 .313   8,26 .325 31,75 1.250 63,50 2.500 2,54 .100 1,58 .062 0,79 .031
CUPG606210002500R CUPG606210002500R   9,53 .375   9,78 .385 25,40 1.000 63,50 2.500 2,54 .100 1,58 .062 0,79 .031
CUPG609310002500R CUPG609310002500R   9,53 .375   9,78 .385 25,40 1.000 63,50 2.500 2,54 .100 2,36 .093 1,18 .047
CUPG612510002500R CUPG612510002500R   9,53 .375   9,78 .385 25,40 1.000 63,50 2.500 2,54 .100 3,18 .125 1,59 .063
CUPG606212502500R CUPG606212502500R   9,53 .375   9,78 .385 31,75 1.250 63,50 2.500 2,54 .100 1,58 .062 0,79 .031
CUPG609312502500R CUPG609312502500R   9,53 .375   9,78 .385 31,75 1.250 63,50 2.500 2,54 .100 2,36 .093 1,18 .047
CUPG612512502500R CUPG612512502500R   9,53 .375   9,78 .385 31,75 1.250 63,50 2.500 2,54 .100 3,18 .125 1,59 .063
CUPG806210003000R CUPG806210003000R 12,70 .500 12,95 .510 25,40 1.000 76,20 3.000 3,81 .150 1,58 .062 0,79 .031
CUPG809310003000R CUPG809310003000R 12,70 .500 12,95 .510 25,40 1.000 76,20 3.000 3,81 .150 2,36 .093 1,18 .047
CUPG812510003000R CUPG812510003000R 12,70 .500 12,95 .510 25,40 1.000 76,20 3.000 3,81 .150 3,18 .125 1,59 .063
CUPG806215003000R CUPG806215003000R 12,70 .500 12,95 .510 38,10 1.500 76,20 3.000 3,81 .150 1,58 .062 0,79 .031
CUPG809315003000R CUPG809315003000R 12,70 .500 12,95 .510 38,10 1.500 76,20 3.000 3,81 .150 2,36 .093 1,18 .047
CUPG812515003000R CUPG812515003000R 12,70 .500 12,95 .510 38,10 1.500 76,20 3.000 3,81 .150 3,18 .125 1,59 .063
