Laydown Threading - Boring Bars
E-LSE
|
|
|
|
|

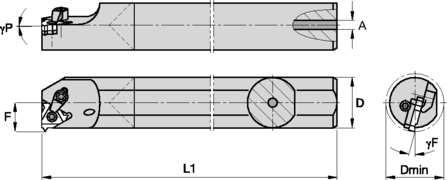

Carbide shank with through coolant. |
|
|
| Part # |
catalog # |
D |
D min |
F |
L1 |
A |
γF° |
γP° |
insert size |
shim |
shim screw |
Torx |
clamp assembly |
Torx |
insert screw |
Torx |
|
Right hand |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2892518 |
E06LSER2 |
.375 |
.500 |
.280 |
6.00 |
.13 |
-15.0 |
-1.5 |
2 |
— |
— |
- |
— |
- |
SSN2T |
T8 |
| 2892520 |
E08LSER2 |
.500 |
.650 |
.350 |
8.00 |
.19 |
-15.0 |
-1.5 |
2 |
— |
— |
- |
— |
- |
SSN2T |
T8 |
| 2892522 |
E10LSER3 |
.625 |
.800 |
.460 |
10.00 |
.22 |
-15.0 |
-1.5 |
3 |
— |
— |
- |
— |
- |
SN3TPKG |
T10 |
| 2892554 |
E12LSER3 |
.750 |
.900 |
.510 |
10.00 |
.22 |
-15.0 |
-1.5 |
3 |
SMYI3 |
SSY3T |
T10 |
CKC3 |
T15 |
SSA3T |
T10 |
|
Left hand |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2892519 |
E06LSEL2 |
.375 |
.500 |
.280 |
6.00 |
.13 |
-15.0 |
-1.5 |
2 |
— |
— |
- |
— |
- |
SSN2T |
T8 |
| 2892521 |
E08LSEL2 |
.500 |
.650 |
.350 |
8.00 |
.19 |
-15.0 |
-1.5 |
2 |
— |
— |
- |
— |
- |
SSN2T |
T8 |
| 2892553 |
E10LSEL3 |
.625 |
.800 |
.460 |
10.00 |
.22 |
-15.0 |
-1.5 |
3 |
— |
— |
- |
— |
- |
SN3TPKG |
T10 |
| 2892555 |
E12LSEL3 |
.750 |
.900 |
.510 |
10.00 |
.22 |
-15.0 |
-1.5 |
3 |
SMYE3 |
SSY3T |
T10 |
CKC3 |
T15 |
SSA3T |
T10 |
NOTE: Items listed without a shim are designed for a 1.5° inclination angle. |
|
